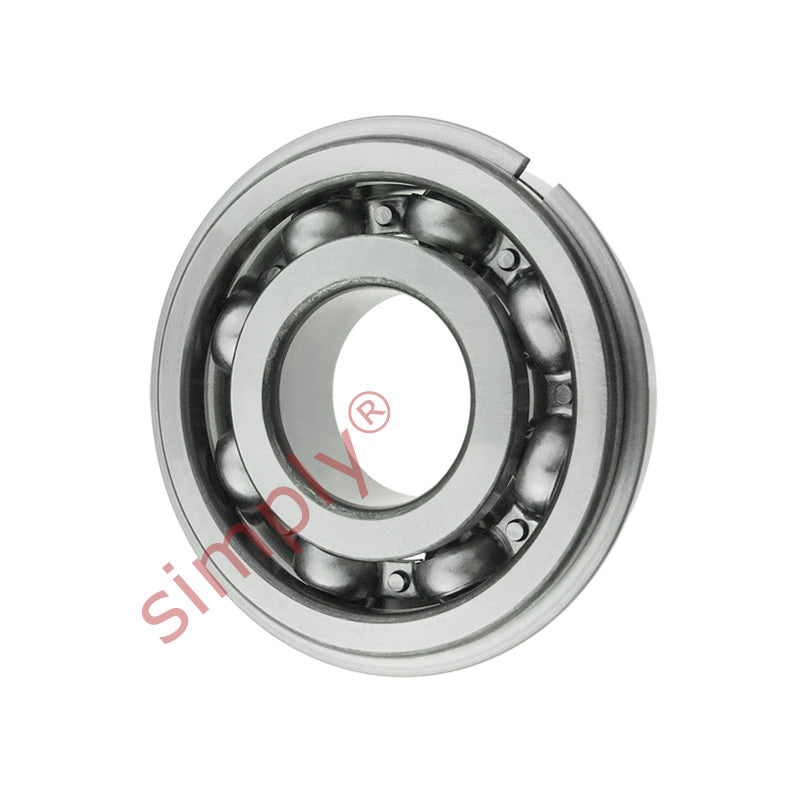

NSK 6207NR Open Type Deep Groove Ball Bearing With Snap Ring 35x72x17mm
NSK 6207NR Open Type Deep Groove Ball Bearing With Snap Ring 35x72x17mm
Regular price
€15,95
ex VAT
Regular price
Sale price
€15,95
ex VAT
In stock
Price Break
4+
€11,45
10+
€10,80
20+
€10,67
30+
€10,55
50+
€10,42
75+
€10,29
100+
€9,65
200+
€9,52
250+
€9,39
500+
€9,26
1000+
€9,00
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| r min | 1.1mm |
| Dynamic load Cr | 25700 N (2620 kgf) |
| Static load Cor | 15300 N (1560 kgf) |
| Factor | 13.8 |
| Speed in grease | 9500 rpm |
| Speed in oil | 11000 rpm |
| a max | 3.28mm |
| b min | 1.9mm |
| D1 max | 68.81mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 78.6mm |
| f max | 1.7mm |
| da2 min | 41.5mm |
| da2max | 44.5mm |
| Da2max | 65.5mm |
| ra max | 1mm |
| Dx min | 80mm |
| Cy max | 4.6mm |
| Weight | 0.284 kg |
