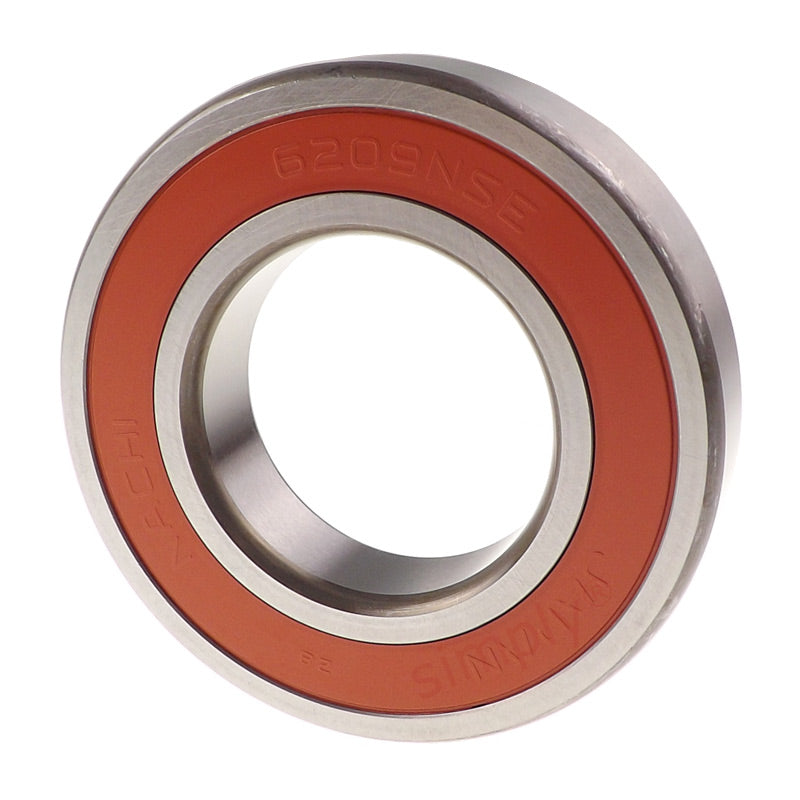

NACHI 62092NSE Contact Rubber Sealed Deep Groove Ball Bearing 45x85x19mm
NACHI 62092NSE Contact Rubber Sealed Deep Groove Ball Bearing 45x85x19mm
Regular price
€15,95
ex VAT
Regular price
Sale price
€15,95
ex VAT
Equivalent to: 6209NSE 6209DU 6209RS 6209RSH 6209P 6209RSR 6209LU 6209DDU 62092RS 62092RS1 62092RSH 6209PP 62092RSR 62092RSR
In stock
Price Break
5+
€11,83
9+
€11,16
19+
€11,03
29+
€10,90
49+
€10,76
74+
€10,63
99+
€9,97
199+
€9,83
249+
€9,70
499+
€9,57
999+
€9,30
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6209NSE 6209DU 6209RS 6209RSH 6209P 6209RSR 6209LU 6209DDU 62092RS 62092RS1 62092RSH 6209PP 62092RSR 62092RSR
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard

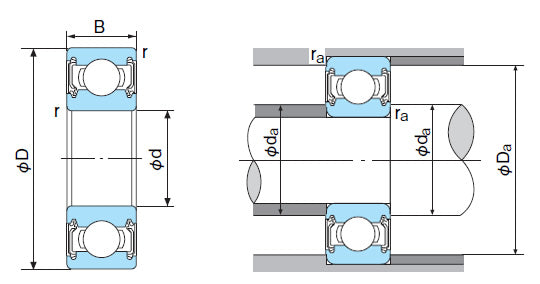

Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 85mm |
| Width B | 19mm |
| Min radius r | 1.1mm |
| Dynamic load | 32500 kN |
| Static load | 20500 kN |
| Max speed | 7800 rpm |
| da min | 52mm |
| Da max | 78mm |
| ra max | 1mm |
| Weight | 0.407 kg |
