SKU: 6209/VA201-SKF

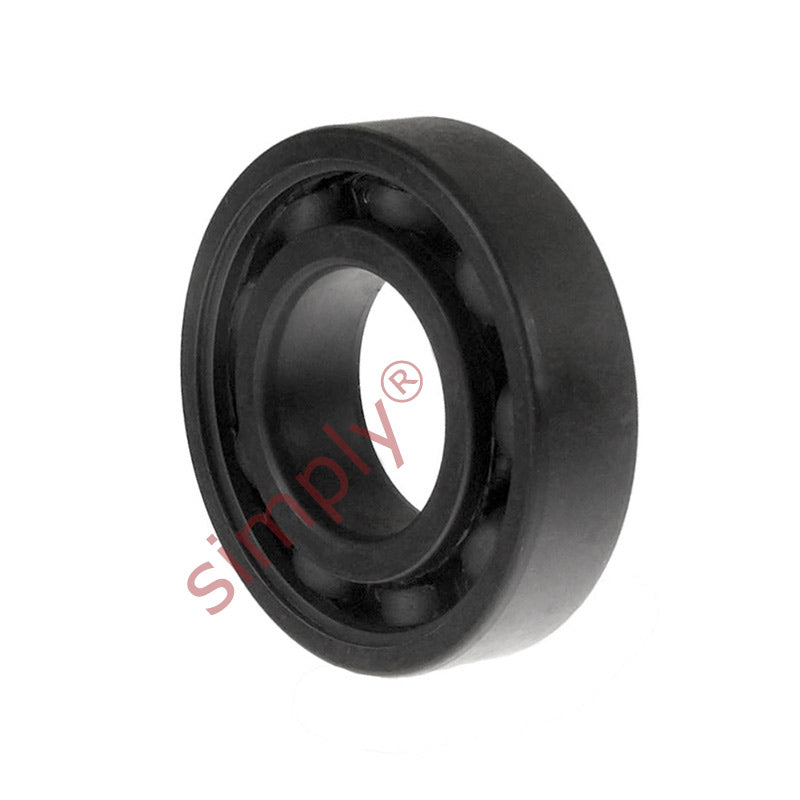

SKF 6209VA201 Single Row Deep Groove Ball Bearing High Temperature Type 45x85x19mm
SKF 6209VA201 Single Row Deep Groove Ball Bearing High Temperature Type 45x85x19mm
Regular price
€64,22
ex VAT
Regular price
Sale price
€64,22
ex VAT
In stock
Price Break
10+
€57,16
19+
€53,94
29+
€53,30
39+
€52,66
49+
€52,02
74+
€51,38
99+
€48,17
199+
€47,52
249+
€46,88
499+
€46,24
999+
€44,95
Couldn't load pickup availability
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| d1 | 57.6mm |
| D2 | 75.2mm |
| r1r2 | 1.1mm |
| Basic load rating Co | 21.6 kN |
| Weight | 0.41 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
