SKU: 6209NR-SKF

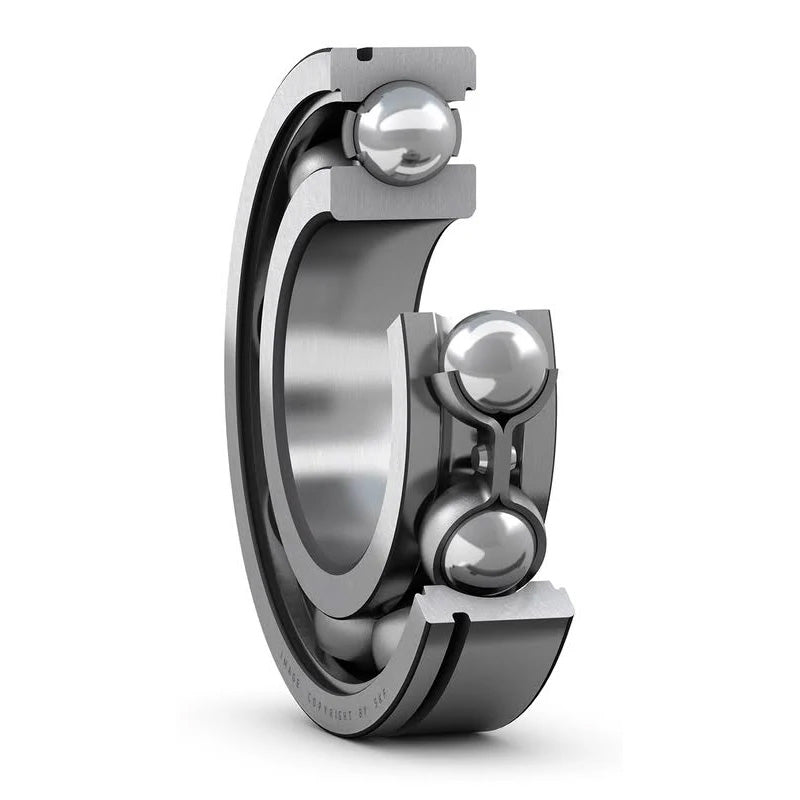

SKF 6209NR Open Type Snap Ring Deep Groove Bearing 45x85x19mm
SKF 6209NR Open Type Snap Ring Deep Groove Bearing 45x85x19mm
Regular price
€40,95
ex VAT
Regular price
Sale price
€40,95
ex VAT
In stock
Price Break
4+
€30,47
10+
€28,76
20+
€28,42
30+
€28,08
50+
€27,73
75+
€27,39
100+
€25,68
200+
€25,34
250+
€25,00
500+
€24,65
1000+
€23,97
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical

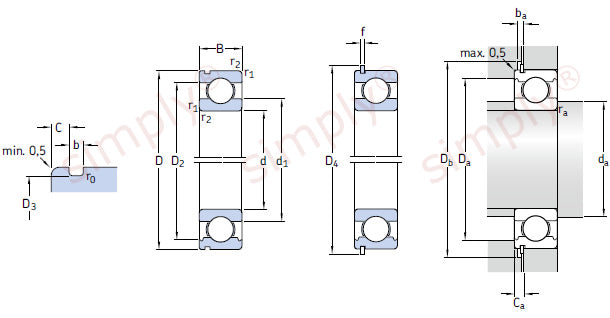

| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 21.6 kN |
| Fatigue load limit Pu | 915 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.41kg |
| Snap ring | SP 85 |
| d1 | 57.6mm |
| D2 | 75.2mm |
| D3 | 81.81mm |
| D4 | 91.6mm |
| b | 1.9mm |
| f | 1.7mm |
| C | 3.28mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da min | 52mm |
| Da max | 78mm |
| Db min | 93mm |
| ba min | 2.2mm |
| Ca max | 4.98mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 14 |
