SKU: 6211NR-MB

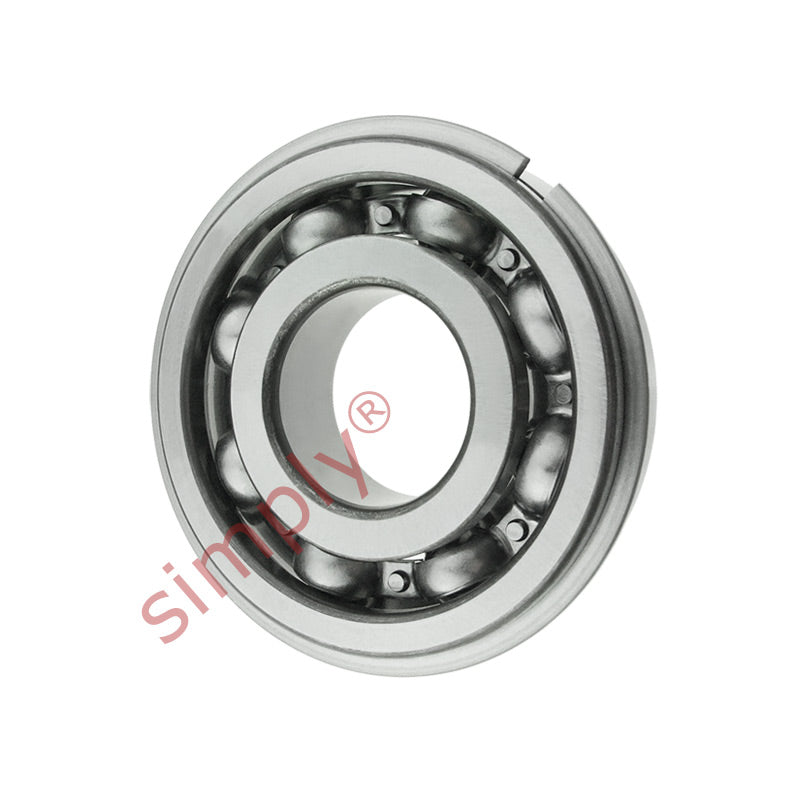

6211NR Deep Groove Ball Bearing with Snap Ring 55x100x21mm
6211NR Deep Groove Ball Bearing with Snap Ring 55x100x21mm
Regular price
€24,95
ex VAT
Regular price
Sale price
€24,95
ex VAT
In stock
Price Break
10+
€18,90
19+
€17,84
29+
€17,63
39+
€17,42
49+
€17,20
74+
€16,99
99+
€15,93
199+
€15,72
249+
€15,51
499+
€15,29
999+
€14,87
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 21mm |
| Dyamic load C | 46.2 kN |
| Static load Co | 29 kN |
| Fatigue load limit Pu | 1.25 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 9000 rpm |
| Mass | 0.61 kg |
| d1 | 69.1mm |
| d2 | 85.8mm |
| D2 | 89.4mm |
| r1r2 min | 1.5mm |
| da min | 64 |
