SKU: 6213-2Z-SKF

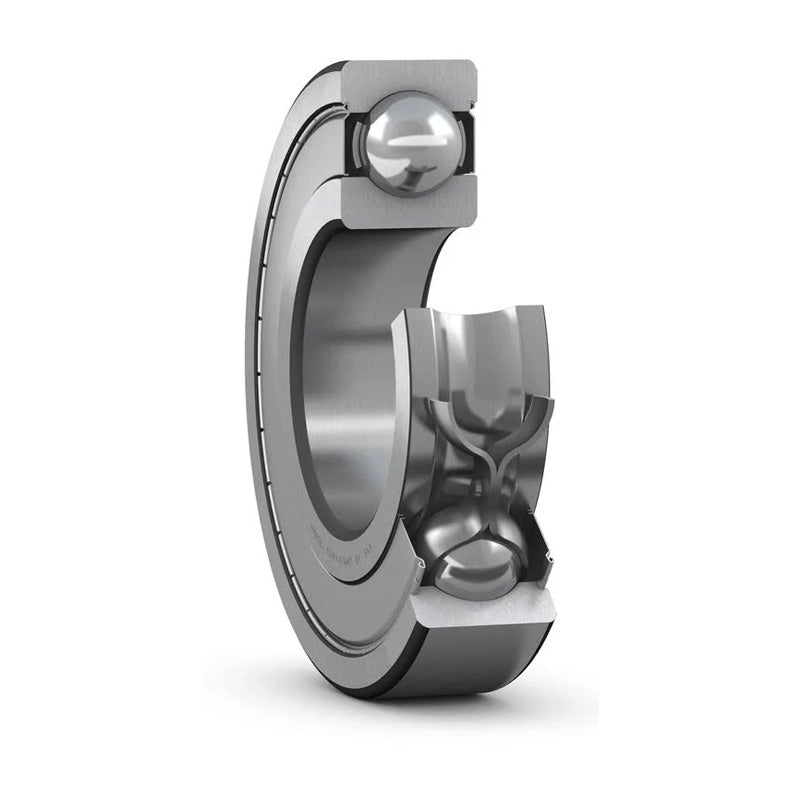

SKF 62132Z Metal Shielded Deep Groove Ball Bearing 65x120x23mm
SKF 62132Z Metal Shielded Deep Groove Ball Bearing 65x120x23mm
Regular price
€71,95
ex VAT
Regular price
Sale price
€71,95
ex VAT
Equivalent to: 6213ZZE 6213ZZ 6213.2Z 6213KDD 6213DD 6213FF 62132ZR 6213ZZ 62132Z 6213ZZ
In stock
Price Break
4+
€54,46
10+
€51,40
20+
€50,79
30+
€50,18
50+
€49,57
75+
€48,95
100+
€45,90
200+
€45,28
250+
€44,67
500+
€44,06
1000+
€42,84
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6213ZZE 6213ZZ 6213.2Z 6213KDD 6213DD 6213FF 62132ZR 6213ZZ 62132Z 6213ZZ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 23mm |
| Dynamic load C | 58.5 kN |
| Static load Co | 40.5 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 6000 rpm |
| Weight | 0.99 kg |
| d1 | 83.3mm |
| d2 | 0mm |
| D2 | 106mm |
| r1r2 min | 1.5mm |
| da min | 74mm |
| da max | 0mm |
| Da max | 111mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 15 |
