SKU: 6215LLUNR/2AS-NTN

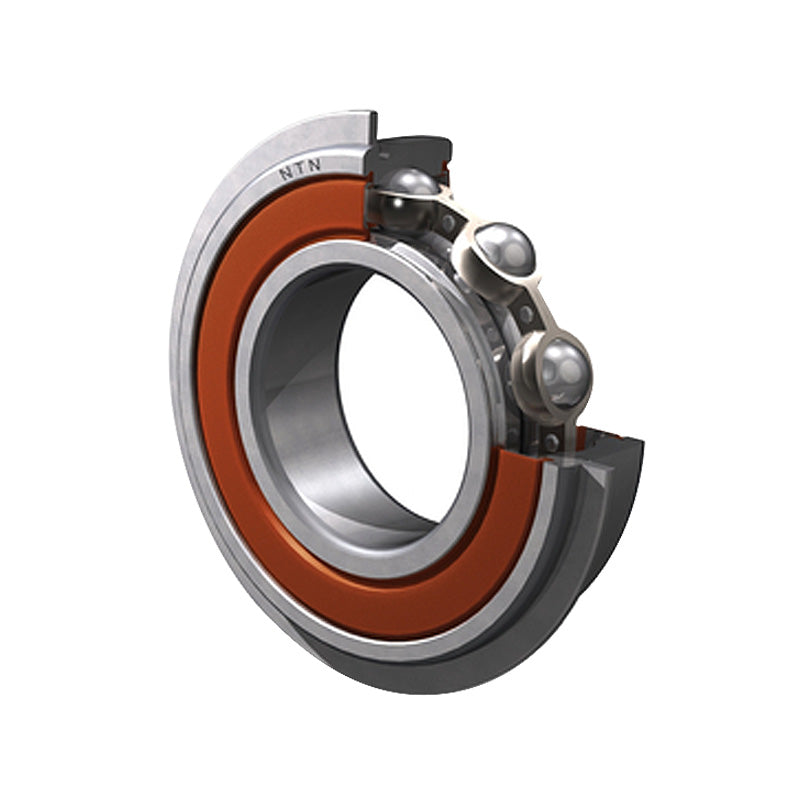

NTN 6215LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 75x130x25mm
Equivalent to: 6215LLUNRCM 6215LLUNR 6215NSENR 6215DUNR 6215RSNR 6215RSHNR 6215PNR 6215RSRNR 6215LUNR 62152NSENR 6215DDUNR 62152RSNR 6215-2RSNR 62152RS1NR 62152RSHNR 6215PPNR 62152RSRNR 6215LLUNR 6215RS2NR 62152RS2NR 62152RSLNR 6215LFSNR 6215EENR Z49515 215SZG
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 75mm |
| D | 130mm |
| B | 25mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 73.5 kN |
| C<sub>or</sub> | 49.5 kN |
| C<sub>u</sub> | 3.8 kN |
| f<sub>0</sub> | 14.7 |
| --- | Fitting Dimensions |
| Speed | 3200rpm |
| D<sub>1</sub> Max. | 125.22mm |
| a Max. | 4.06mm |
| b Min. | 3.1mm |
| r<sub>o</sub> Max. | 0.6mm |
