SKU: 63003-2RS1/C3-MB

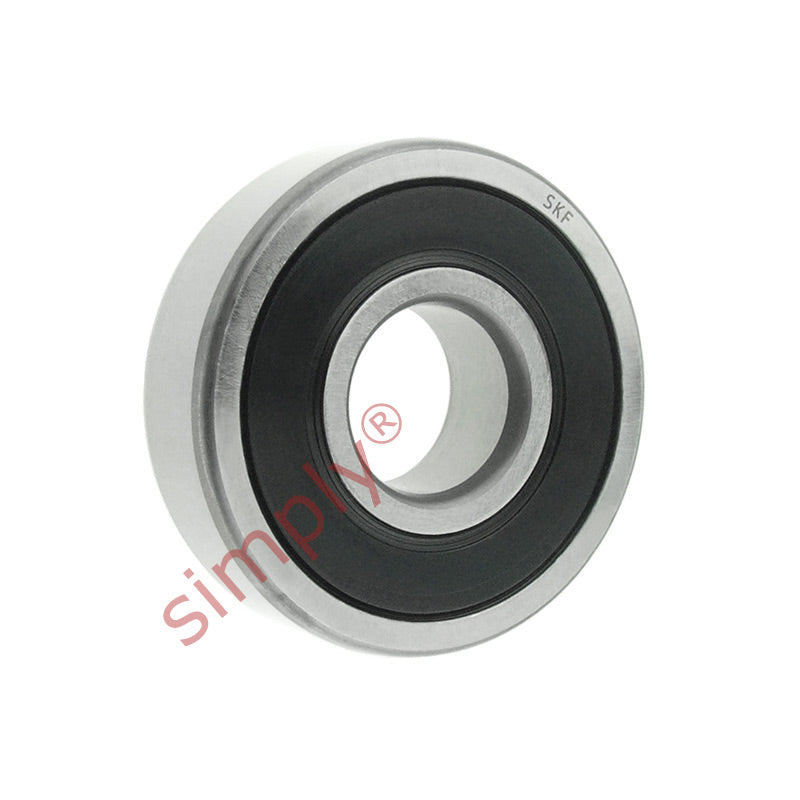

Major Brand 630032RS1C3 Rubber Sealed Deep Groove Ball Bearing 17x35x14mm
Major Brand 630032RS1C3 Rubber Sealed Deep Groove Ball Bearing 17x35x14mm
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
Equivalent to: 63003NSEC3 63003DUC3 63003RSC3 63003RSHC3 63003PC3 63003RSRC3 63003LUC3 630032NSEC3 63003DDUC3 630032RSC3 630032RSHC3 63003PPC3 630032RSRC3 63003LLU
In stock
Price Break
4+
€9,15
10+
€8,63
20+
€8,53
30+
€8,43
50+
€8,33
75+
€8,22
100+
€7,71
200+
€7,61
250+
€7,50
500+
€7,40
1000+
€7,19
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 63003NSEC3 63003DUC3 63003RSC3 63003RSHC3 63003PC3 63003RSRC3 63003LUC3 630032NSEC3 63003DDUC3 630032RSC3 630032RSHC3 63003PPC3 630032RSRC3 63003LLU
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 14mm |
| Dynamic load C | 6.05 kN |
| Static load Co | 3.25 kN |
| Fatigue load limit Pu | 0.137 kN |
| Reference speed | 45000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.052 kg |
| d1 | 23mm |
| D2 | 31.4mm |
| r1r2 min | 0.3mm |
| da min | 19mm |
| Da max | 33mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
