SKU: 63004-2RS1/C3-SKF

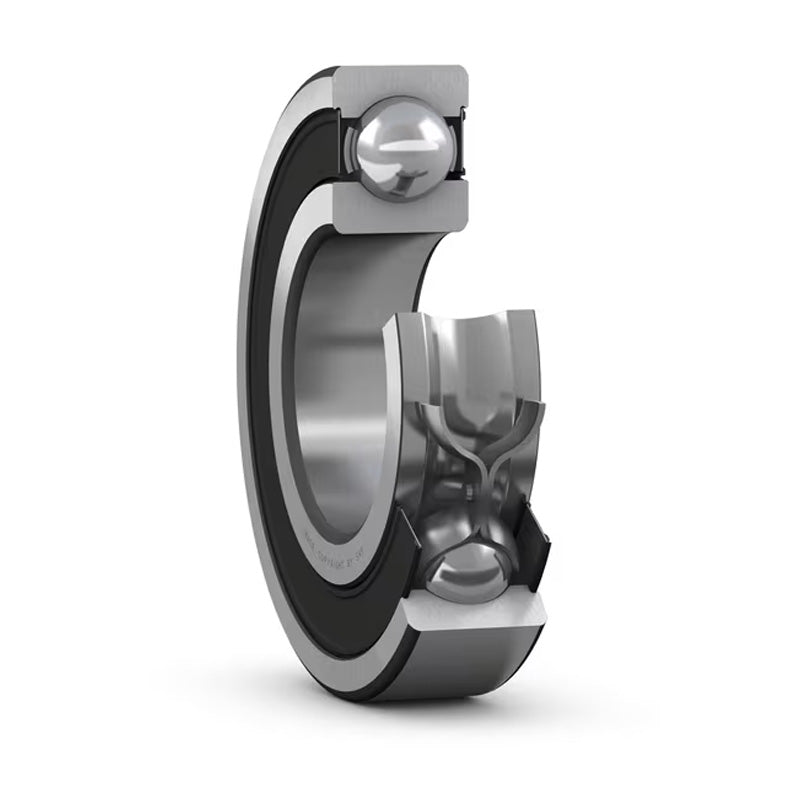

SKF 630042RS1C3 Rubber Sealed Deep Groove Ball Bearing 20x42x16mm
SKF 630042RS1C3 Rubber Sealed Deep Groove Ball Bearing 20x42x16mm
Regular price
€23,95
ex VAT
Regular price
Sale price
€23,95
ex VAT
Equivalent to: 63004NSEC3 63004DUC3 63004RSC3 63004RSHC3 63004PC3 63004RSRC3 63004LUC3 630042NSEC3 63004DDUC3 630042RSC3 630042RSHC3 63004PPC3 630042RSRC3 63004LLU
In stock
Price Break
4+
€17,84
10+
€16,84
20+
€16,64
30+
€16,44
50+
€16,24
75+
€16,04
100+
€15,04
200+
€14,84
250+
€14,64
500+
€14,44
1000+
€14,04
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 63004NSEC3 63004DUC3 63004RSC3 63004RSHC3 63004PC3 63004RSRC3 63004LUC3 630042NSEC3 63004DDUC3 630042RSC3 630042RSHC3 63004PPC3 630042RSRC3 63004LLU
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 16mm |
| Dynamic load C | 9.36 kN |
| Static load Co | 5 kN |
| Fatigue load limit Pu | 0.212 kN |
| Reference speed | 38000 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.086 kg |
| d1 | 27.2mm |
| D2 | 37.2mm |
| r1r2 min | 0.6mm |
| da min | 23.2mm |
| Da max | 38.8mm |
| ra max | 0.6mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
