SKU: 6303-2Z-HT-330

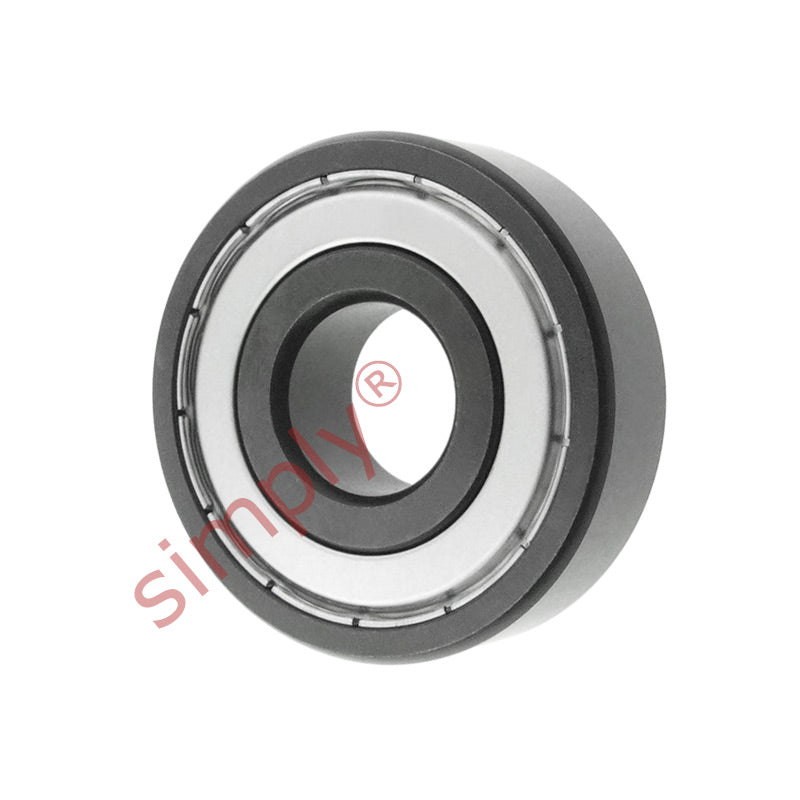

6303ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 17x47x14mm Max 175rpm
6303ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 17x47x14mm Max 175rpm
Regular price
€10,98
ex VAT
Regular price
Sale price
€10,98
ex VAT
Equivalent to: 63032ZVA201 63032ZVA208 63032ZVA228
In stock
Price Break
10+
€9,77
19+
€9,22
29+
€9,11
39+
€9,00
49+
€8,89
74+
€8,78
99+
€8,24
199+
€8,13
249+
€8,02
499+
€7,91
999+
€7,69
Couldn't load pickup availability
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Equivalent: 63032ZVA201 63032ZVA208 63032ZVA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 17mm |
|---|---|
| Outside diameter D | 47mm |
| Width W | 14mm |
| Static load max | 3.79 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 175 rpm |
| Weight | 120 g |
