SKU: 6303NR-NSK

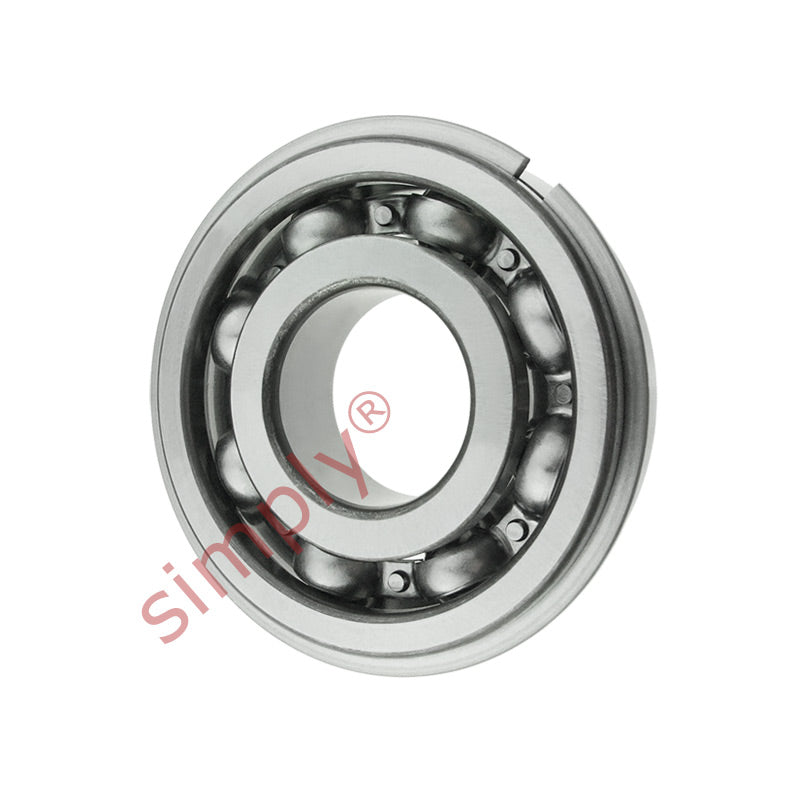

NSK 6303NR Open Type Deep Groove Ball Bearing With Snap Ring 17x47x14mm
NSK 6303NR Open Type Deep Groove Ball Bearing With Snap Ring 17x47x14mm
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
In stock
Price Break
4+
€5,89
10+
€5,56
20+
€5,49
30+
€5,43
50+
€5,36
75+
€5,30
100+
€4,97
200+
€4,90
250+
€4,83
500+
€4,77
1000+
€4,63
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| B | 14mm |
| r min | 1mm |
| Dynamic load Cr | 13600 N (1390 kgf) |
| Static load Cor | 6650 N (675 kgf) |
| Factor | 12.4 |
| Speed in grease | 15000 rpm |
| Speed in oil | 18000 rpm |
| a max | 2.46mm |
| b min | 1.35mm |
| D1 max | 44.6mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 52.7mm |
| f max | 1.12mm |
| da2 min | 22mm |
| da2max | 25.5mm |
| Da2max | 42mm |
| ra max | 1mm |
| Dx min | 53.5mm |
| Cy max | 3.3mm |
| Weight | 0.113 kg |
