SKU: 6304NR/C3-MB

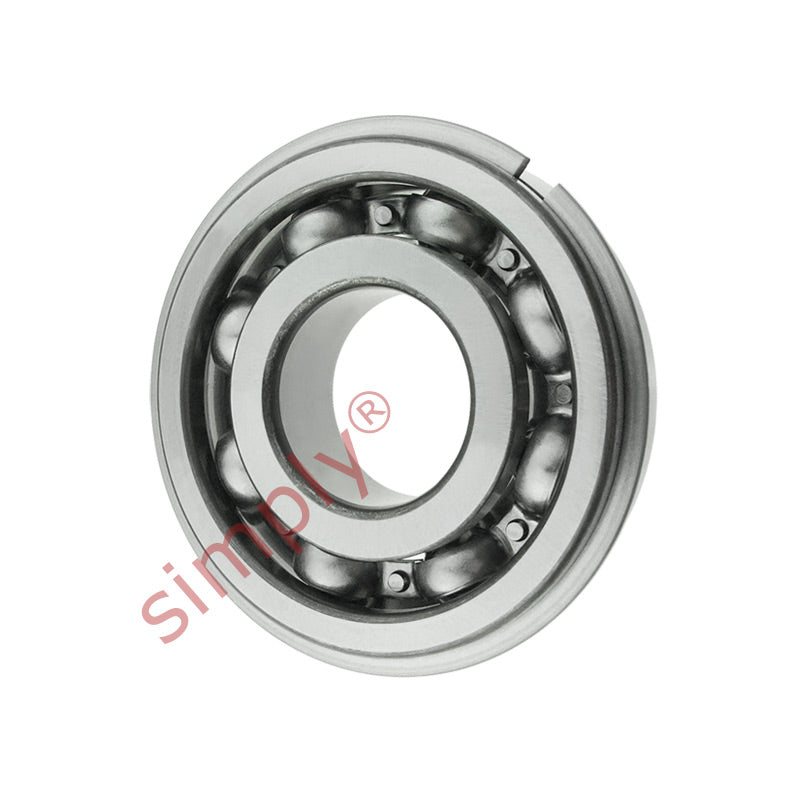

6304NRC3 Deep Groove Ball Bearing with Snap Ring 20x52x15mm
6304NRC3 Deep Groove Ball Bearing with Snap Ring 20x52x15mm
Regular price
€11,38
ex VAT
Regular price
Sale price
€11,38
ex VAT
In stock
Price Break
10+
€10,13
19+
€9,56
29+
€9,45
39+
€9,33
49+
€9,22
74+
€9,10
99+
€8,54
199+
€8,42
249+
€8,31
499+
€8,19
999+
€7,97
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dyamic load C | 16.8 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 0.335 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 19000 rpm |
| Mass | 0.14 kg |
| d1 | 30.4mm |
| d2 | 41.6mm |
| D2 | 44.8mm |
| r1r2 min | 1.1mm |
| da min | 27 |
