SKU: 6306C4-NTN

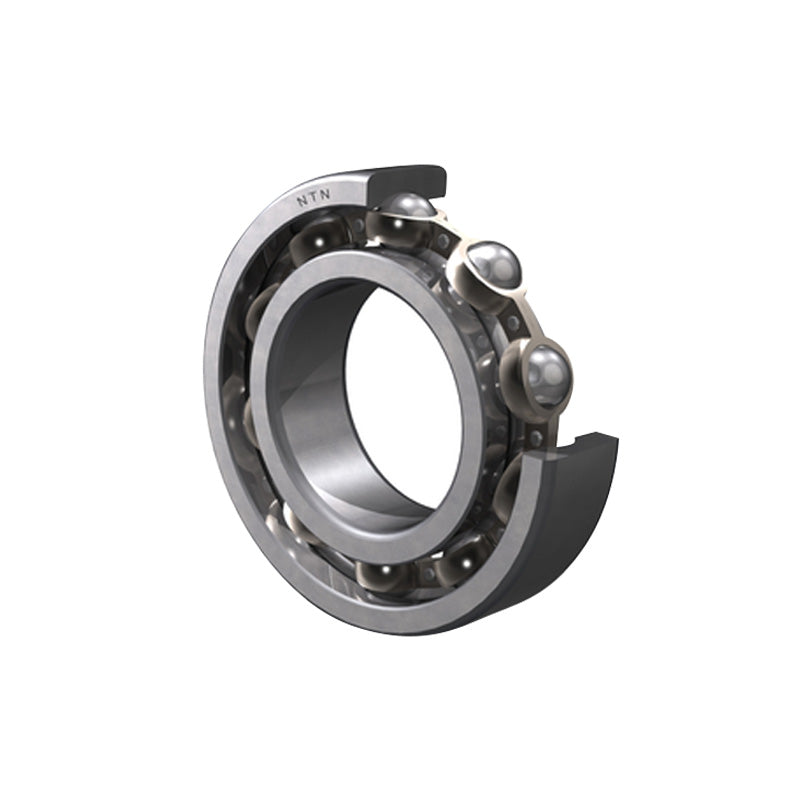

NTN 6306C4 Open Type Deep Groove Ball Bearing 30x72x19mm
NTN 6306C4 Open Type Deep Groove Ball Bearing 30x72x19mm
Regular price
€23,95
ex VAT
Regular price
Sale price
€23,95
ex VAT
Equivalent to: 306KC4 1306C4 306KSC4 6306C4 3306C4 7BC4
In stock
Price Break
3+
€17,66
5+
€16,67
10+
€16,47
25+
€16,27
49+
€16,07
74+
€15,87
99+
€14,88
199+
€14,68
249+
€14,48
499+
€14,28
999+
€13,89
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 306KC4 1306C4 306KSC4 6306C4 3306C4 7BC4
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 72mm |
| B | 19mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 29.5 kN |
| C<sub>or</sub> | 15 kN |
| C<sub>u</sub> | 1.14 kN |
| f<sub>0</sub> | 13.3 kN |
| Grease | 10000 rpm |
| Oil | 12000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 36.5mm |
| D<sub>a</sub> Max. | 65.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.36 kg |
