SKU: 6306NR/C3-SKF

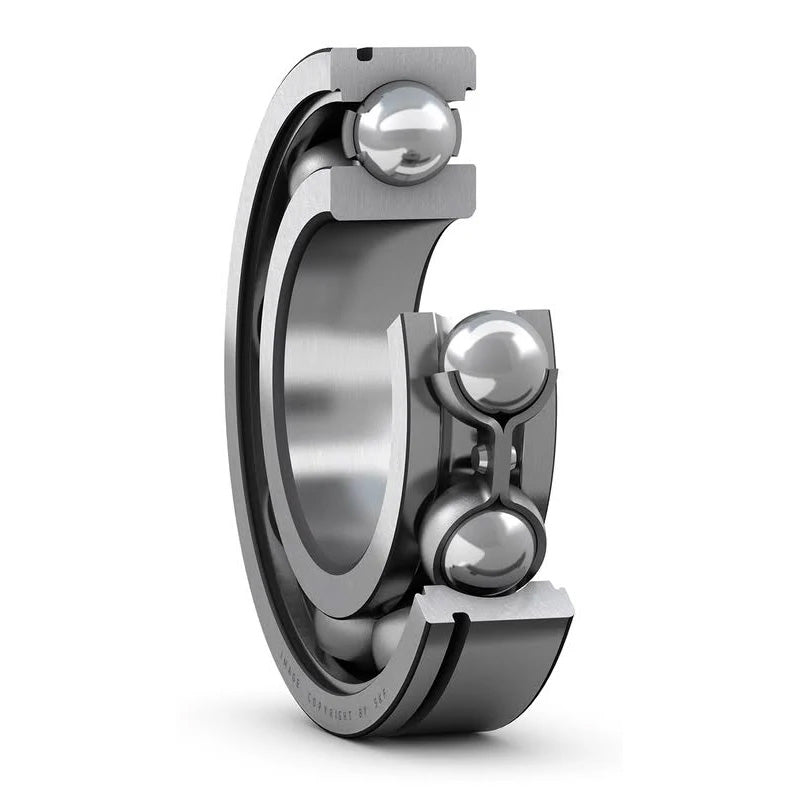

SKF 6306NRC3 Open Type Snap Ring Deep Groove Bearing 30x72x19mm
SKF 6306NRC3 Open Type Snap Ring Deep Groove Bearing 30x72x19mm
Regular price
€27,95
ex VAT
Regular price
Sale price
€27,95
ex VAT
In stock
Price Break
4+
€20,60
10+
€19,45
20+
€19,21
30+
€18,98
50+
€18,75
75+
€18,52
100+
€17,36
200+
€17,13
250+
€16,90
500+
€16,67
1000+
€16,21
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| Dynamic load C | 29.6 kN |
| Static load Co | 16 kN |
| Fatigue load limit Pu | 0.67 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.35kg |
| Snap ring | SP 72 |
| d1 | 44.6mm |
| D2 | 61.9mm |
| D3 | 68.81mm |
| D4 | 78.6mm |
| b | 1.9mm |
| f | 1.7mm |
| C | 3.28mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da min | 37mm |
| Da max | 65mm |
| Db min | 80mm |
| ba min | 2.2mm |
| Ca max | 4.98mm |
| ra max | 1mm |
| Calc Factor kr | 0.03 |
| fo | 13 |
