SKU: 6308-2Z/VA228-SKF

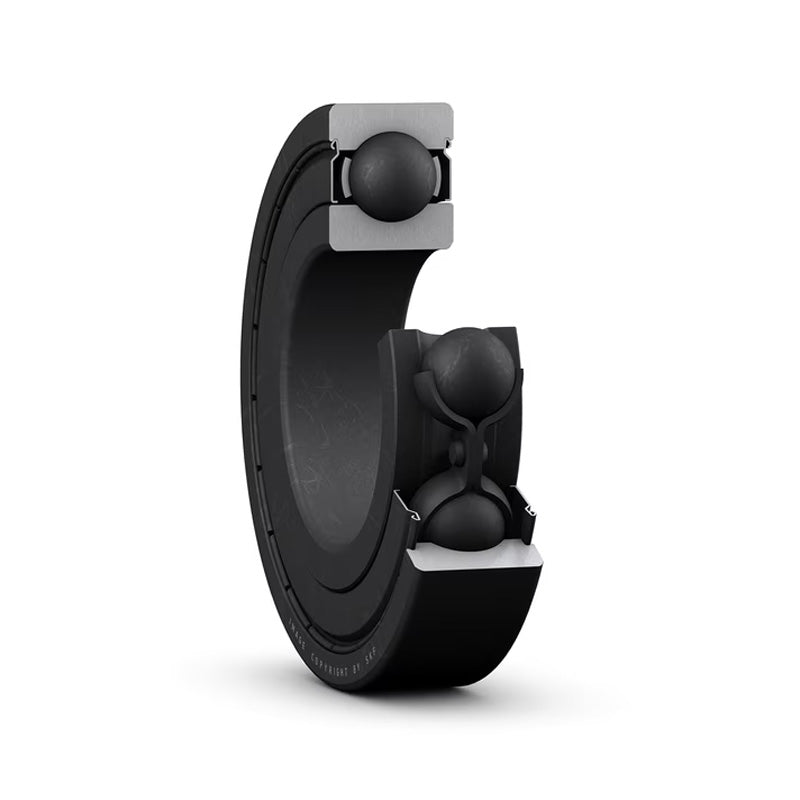

SKF 63082ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 40x90x23mm
SKF 63082ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 40x90x23mm
Regular price
€193,95
ex VAT
Regular price
Sale price
€193,95
ex VAT
In stock
Price Break
10+
€147,68
19+
€139,38
29+
€137,72
39+
€136,06
49+
€134,40
74+
€132,74
99+
€124,45
199+
€122,79
249+
€121,13
499+
€119,47
999+
€116,15
Share this product
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| d1 | 56.1mm |
| D2 | 77.7mm |
| r1r2 | 1.5mm |
| Basic load rating Co | 24 kN |
| Weight | 0.61 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
