SKU: 6308-ZZE-NACHI

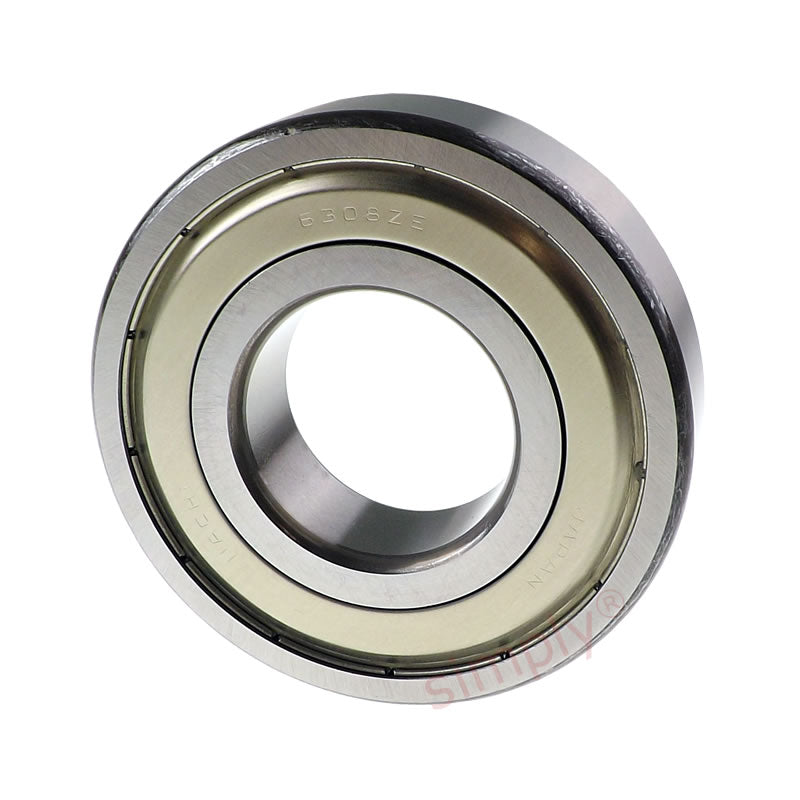

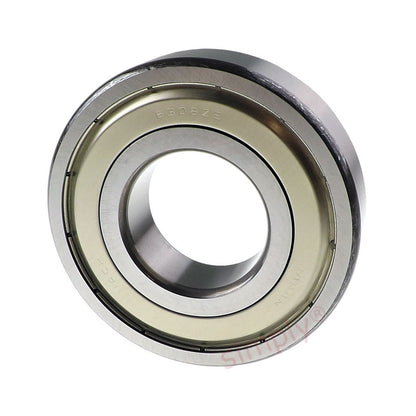

NACHI 6308ZZE Metal Shielded Deep Groove Ball Bearing 40x90x23mm
NACHI 6308ZZE Metal Shielded Deep Groove Ball Bearing 40x90x23mm
Regular price
€19,95
ex VAT
Regular price
Sale price
€19,95
ex VAT
Equivalent to: 6308ZZ 63082Z 6308.2Z 6308KDD 6308DD 63082ZR 6308FF
In stock
Price Break
5+
€14,69
9+
€13,87
19+
€13,70
29+
€13,54
49+
€13,37
74+
€13,21
99+
€12,38
199+
€12,22
249+
€12,05
499+
€11,89
999+
€11,56
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6308ZZ 63082Z 6308.2Z 6308KDD 6308DD 63082ZR 6308FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 40mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 23mm |
| Min radius r | 1.5mm |
| Dynamic load | 40500 kN |
| Static load | 24100 kN |
| Max speed | 7800 rpm |
| da min | 49mm |
| Da max | 81mm |
| ra max | 1.5mm |
| Weight | 0.633 kg |
