SKU: 6309-2RS1-EU

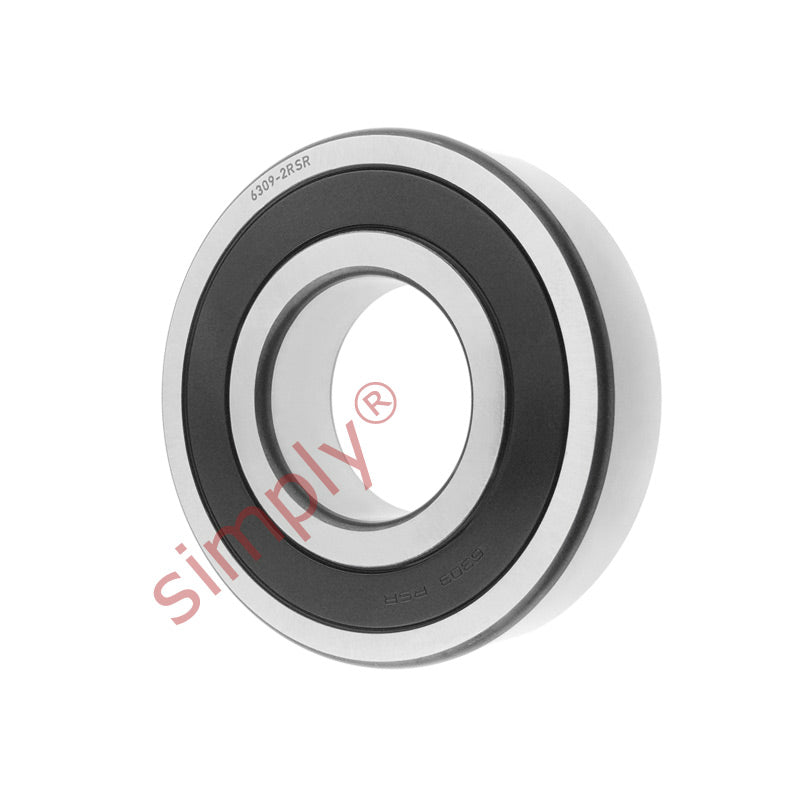

63092RS Budget Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
Equivalent to: 6309NSE 6309DU 6309RS 63092RSH 6309P 6309RSR 6309LU 63092NSE 6309DDU 63092RS 630922RSH 6309PP 63092RSR 6309LLU 63092RS2 6309RS2 63092RSH 63092RS1
In stock
Price Break
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6309NSE 6309DU 6309RS 63092RSH 6309P 6309RSR 6309LU 63092NSE 6309DDU 63092RS 630922RSH 6309PP 63092RSR 6309LLU 63092RS2 6309RS2 63092RSH 63092RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| r min | 1.5mm |
| Dynamic load Cr | 48.9 kN |
| Static load Cor | 29.5 kN |
| Speed in grease | 6800 rpm |
| Speed in oil | 8100 rpm |
