SKU: 6309NR-NSK

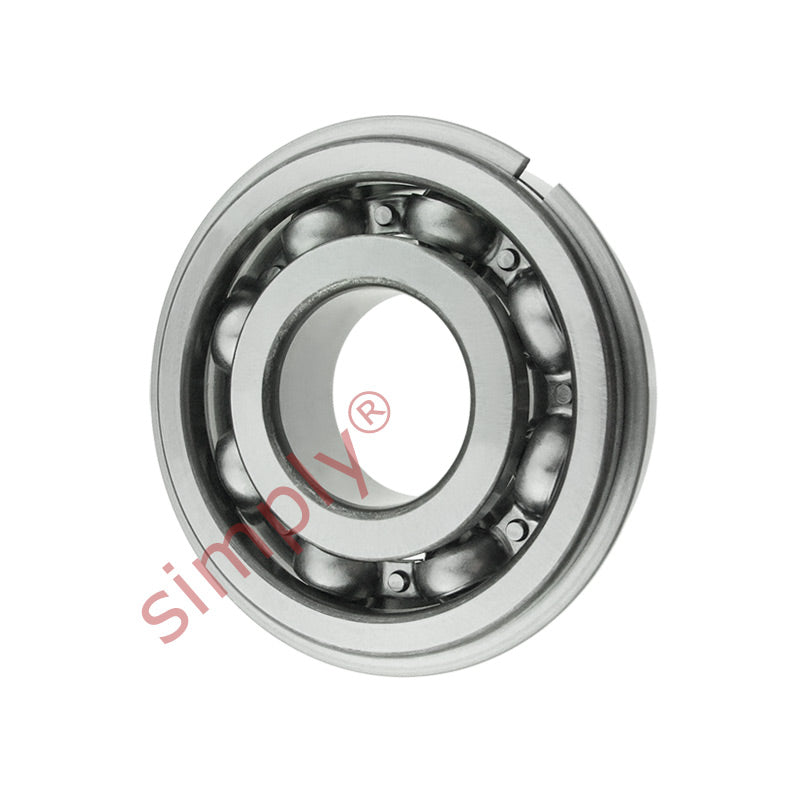

NSK 6309NR Open Type Deep Groove Ball Bearing With Snap Ring 45x100x25mm
NSK 6309NR Open Type Deep Groove Ball Bearing With Snap Ring 45x100x25mm
Regular price
€37,95
ex VAT
Regular price
Sale price
€37,95
ex VAT
In stock
Price Break
4+
€28,87
10+
€27,25
20+
€26,93
30+
€26,60
50+
€26,28
75+
€25,95
100+
€24,33
200+
€24,01
250+
€23,68
500+
€23,36
1000+
€22,71
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| r min | 1.5mm |
| Dynamic load Cr | 53000 N (5400 kgf) |
| Static load Cor | 32000 N (3250 kgf) |
| Factor | 13.1 |
| Speed in grease | 6700 rpm |
| Speed in oil | 8000 rpm |
| a max | 3.28mm |
| b min | 2.7mm |
| D1 max | 96.8mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 106.5mm |
| f max | 2.46mm |
| da2 min | 53mm |
| da2max | 61.5mm |
| Da2max | 92mm |
| ra max | 1.5mm |
| Dx min | 108mm |
| Cy max | 5.4mm |
| Weight | 0.829 kg |
