SKU: 6310-2Z/VA228-SKF

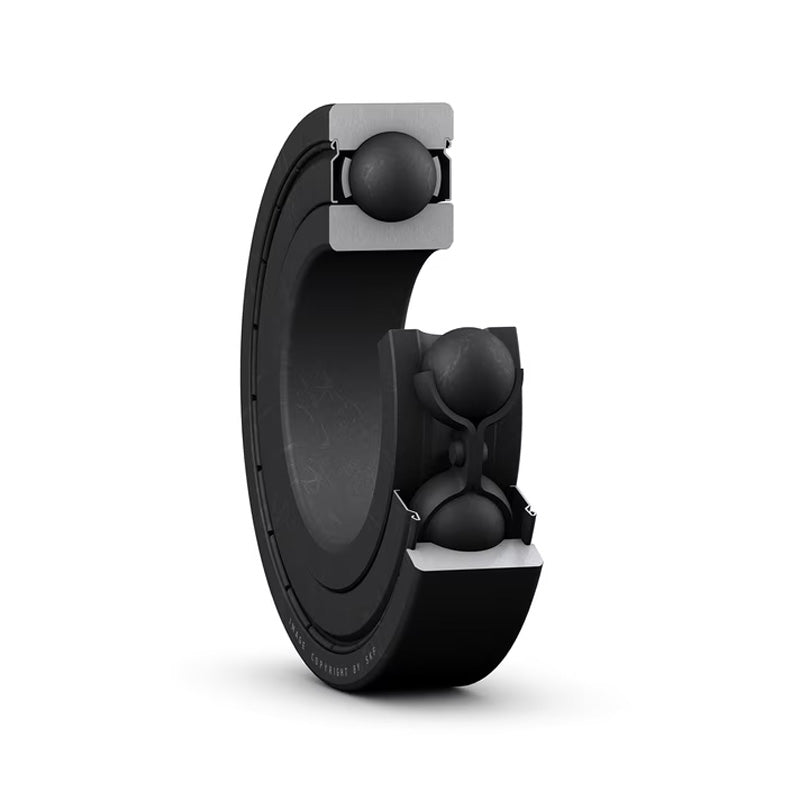

SKF 63102ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 50x110x27mm
SKF 63102ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 50x110x27mm
Regular price
€238,95
ex VAT
Regular price
Sale price
€238,95
ex VAT
In stock
Price Break
10+
€181,23
19+
€171,05
29+
€169,01
39+
€166,98
49+
€164,94
74+
€162,90
99+
€152,72
199+
€150,69
249+
€148,65
499+
€146,61
999+
€142,54
Share this product
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| d1 | 68.7mm |
| D2 | 95.2mm |
| r1r2 | 2mm |
| Basic load rating Co | 38 kN |
| Weight | 1.04 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
