SKU: 6310NR-MB

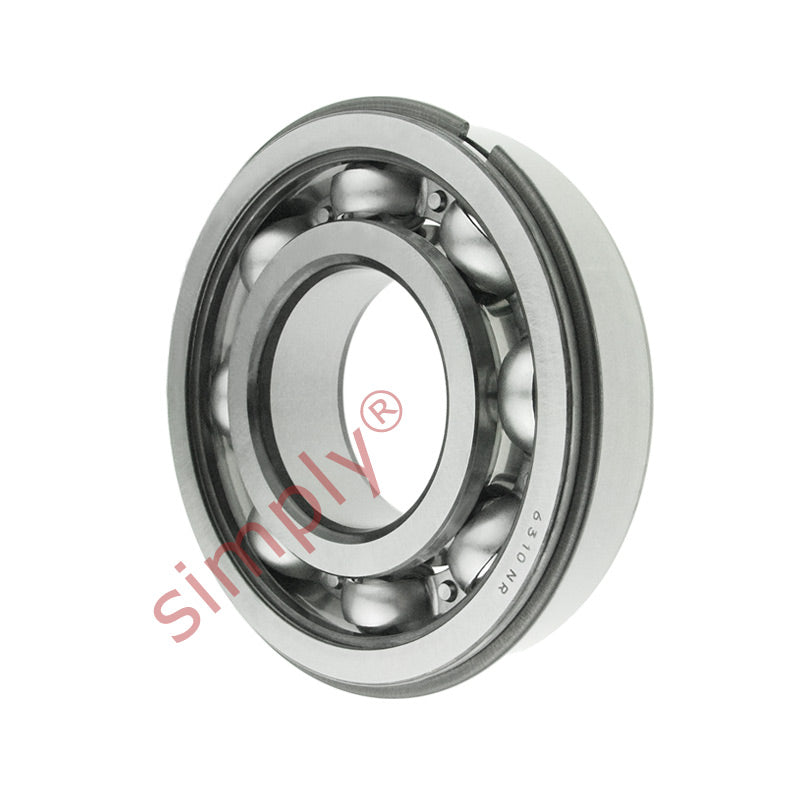

6310NR Deep Groove Ball Bearing with Snap Ring 50x110x27mm
6310NR Deep Groove Ball Bearing with Snap Ring 50x110x27mm
Regular price
€45,95
ex VAT
Regular price
Sale price
€45,95
ex VAT
In stock
Price Break
10+
€34,41
19+
€32,47
29+
€32,09
39+
€31,70
49+
€31,31
74+
€30,93
99+
€29,00
199+
€28,61
249+
€28,22
499+
€27,84
999+
€27,06
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dyamic load C | 65 kN |
| Static load Co | 38 kN |
| Fatigue load limit Pu | 1.6 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 8500 rpm |
| Mass | 1.05 kg |
| d1 | 68.8mm |
| d2 | 91.1mm |
| D2 | 95.2mm |
| r1r2 min | 2mm |
| da min | 61 |
