SKU: 6314NR/C3-SKF

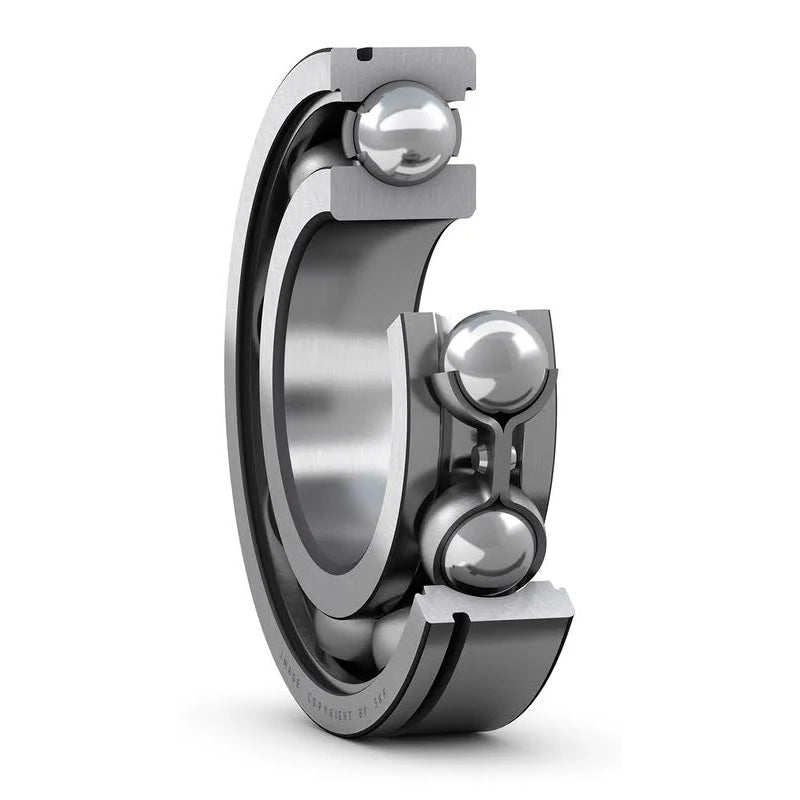

SKF 6314NRC3 Open Type Snap Ring Deep Groove Bearing 70x150x35mm
SKF 6314NRC3 Open Type Snap Ring Deep Groove Bearing 70x150x35mm
Regular price
€257,95
ex VAT
Regular price
Sale price
€257,95
ex VAT
In stock
Price Break
4+
€195,96
10+
€184,95
20+
€182,75
30+
€180,55
50+
€178,34
75+
€176,14
100+
€165,13
200+
€162,93
250+
€160,73
500+
€158,53
1000+
€154,12
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 111 kN |
| Static load Co | 68 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6300 rpm |
| Weight | 2.55kg |
| Snap ring | SP 150 |
| d1 | 94.9mm |
| D2 | 130mm |
| D3 | 145.25mm |
| D4 | 159.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.9mm |
| r1r2 min | 2.1mm |
| ro max | 0.6mm |
| da min | 82mm |
| Da max | 138mm |
| Db min | 162mm |
| ba min | 3.5mm |
| Ca max | 7.72mm |
| ra max | 2mm |
| Calc Factor kr | 0.03 |
| fo | 13 |
