SKU: 6320-2Z/C3-SKF

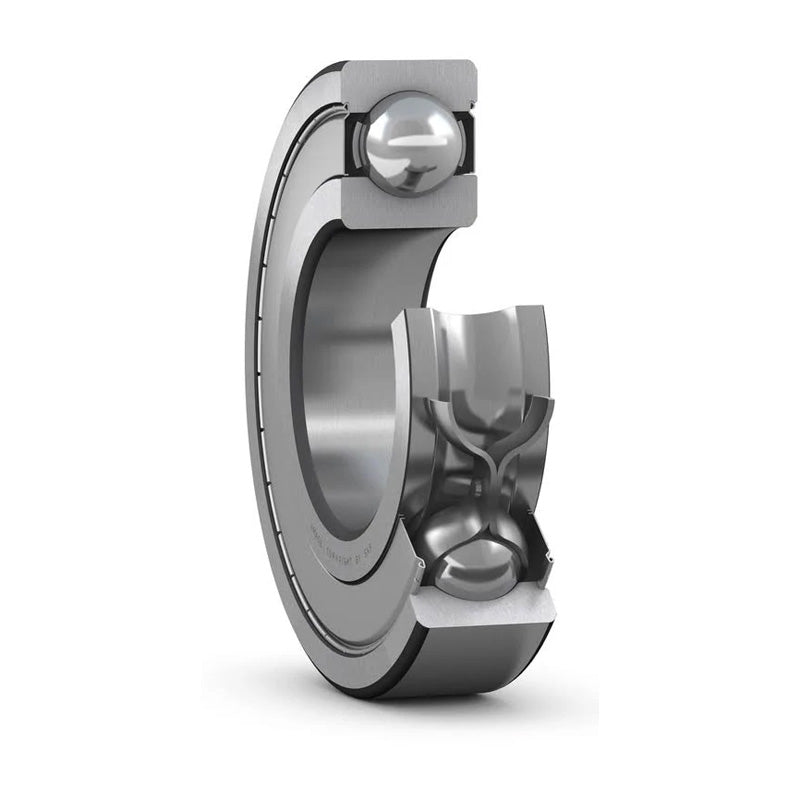

SKF 63202ZC3 Metal Shielded Deep Groove Ball Bearing 100x215x47mm
SKF 63202ZC3 Metal Shielded Deep Groove Ball Bearing 100x215x47mm
Regular price
€648,95
ex VAT
Regular price
Sale price
€648,95
ex VAT
Equivalent to: 6320ZZEC3 6320ZZC3 6320.2ZC3 6320KDDC3 6320DDC3 63202ZRC3 6320FFC3
In stock
Price Break
4+
€493,73
10+
€466,00
20+
€460,45
30+
€454,90
50+
€449,35
75+
€443,81
100+
€416,07
200+
€410,52
250+
€404,97
500+
€399,43
1000+
€388,33
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6320ZZEC3 6320ZZC3 6320.2ZC3 6320KDDC3 6320DDC3 63202ZRC3 6320FFC3
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 47mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 100mm |
|---|---|
| D | 215mm |
| B | 47mm |
| Dynamic load C | 174 kN |
| Static load Co | 140 kN |
| Fatigue load limit Pu | 4.75 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 3400 rpm |
| Weight | 7 kg |
| d1 | 136mm |
| d2 | 0mm |
| D2 | 184mm |
| r1r2 min | 3mm |
| da min | 114mm |
| da max | 0mm |
| Da max | 201mm |
| ra max | 2.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
