SKU: 6379/K-6320/Q-SKF

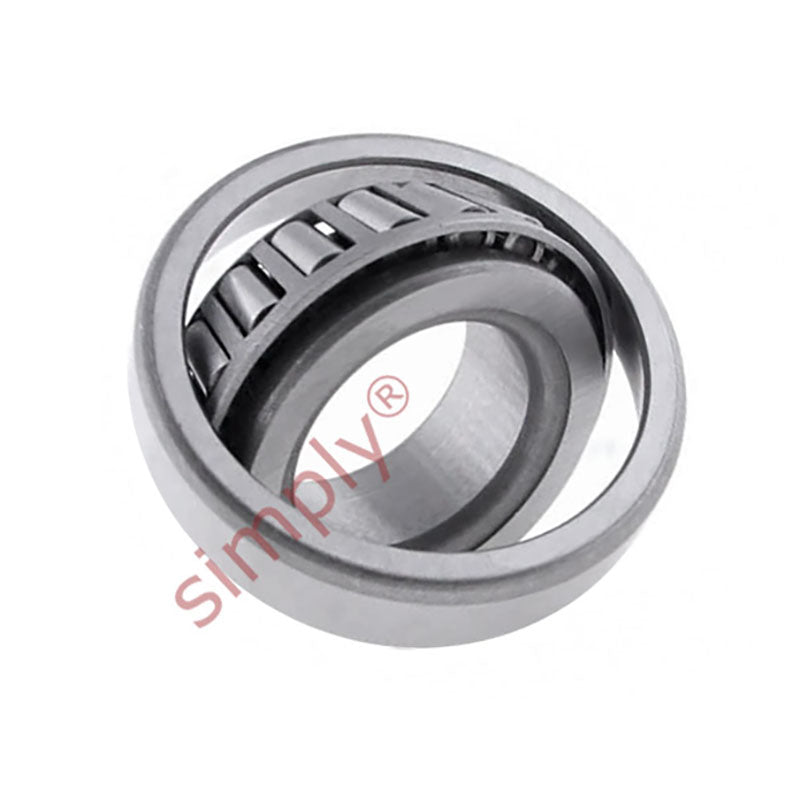

SKF 6379/K-6320/Q Imperial Taper Roller Bearing 2.5625x5.3447x2.125 inches
SKF 6379/K-6320/Q Imperial Taper Roller Bearing 2.5625x5.3447x2.125 inches
Regular price
€268,95
ex VAT
Regular price
Sale price
€268,95
ex VAT
In stock
Price Break
10+
€204,45
19+
€192,96
29+
€190,67
39+
€188,37
49+
€186,07
74+
€183,78
99+
€172,29
199+
€169,99
249+
€167,70
499+
€165,40
999+
€160,80
Share this product
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65.09mm = 2.563 (2-9/16) inch
- Outside Diameter:
- 135.76mm = 5.345 inch
- Width:
- 53.98mm = 2.125 (2-1/8) inch
- Seals / Shields:
- None
Technical
Technical
| d | 65.088mm |
|---|---|
| D | 135.755mm |
| T | 53.975mm |
| Dynamic load | 286 kN |
| Static load | 400 kN |
| Fatigue load limit Pu | 46.5 kN |
| Reference speed | 3800 rpm |
| Limiting speed | 5600 rpm |
| Weight | 3.7 kg |
| d1 | 97.4mm |
| B | 56.007mm |
| C | 44.45mm |
| r1r2 min | 3.5mm |
| r3r4 min | 3.3mm |
| a | 34mm |
| da max | 78mm |
| db min | 76.5mm |
| Da min | 110mm |
| Da max | 124mm |
| Db min | 125mm |
| Ca min | 7mm |
| Cb min | 9.5mm |
| ra max | 3mm |
| rb max | 3mm |
| Calculation factor e | 0.33 |
| Calculation factor Y | 1.8 |
| Calculation factor Y0 | 1 |
