SKU: 6918LLU/2AS-NTN

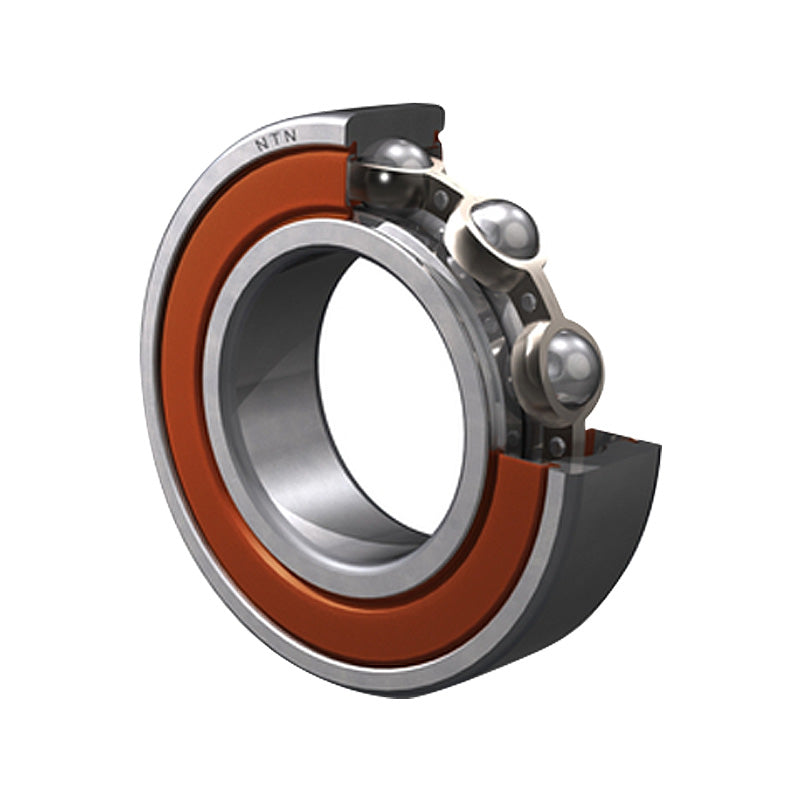

NTN 6918LLU/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 90x125x18mm
Equivalent to: 6918LLUCM 61918LLUCM 6918LLU 61918LLU 6918NSE 6918DU 6918RS 6918RSH 6918P 6918RSR 6918LU 69182NSE 6918DDU 69182RS 6918-2RS 69182RS1 69182RSH 6918PP 69182RSR 6918LLU 6918RS2 69182RS2 69182RSL 6918LFS 6918EE 1918SZZ 6918DD AY902RS 9318NPP
In stock
Price Break
Share this product
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6918LLUCM 61918LLUCM 6918LLU 61918LLU 6918NSE 6918DU 6918RS 6918RSH 6918P 6918RSR 6918LU 69182NSE 6918DDU 69182RS 6918-2RS 69182RS1 69182RSH 6918PP 69182RSR 6918LLU 6918RS2 69182RS2 69182RSL 6918LFS 6918EE 1918SZZ 6918DD AY902RS 9318NPP
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 125mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 90mm |
| D | 125mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 36.5 kN |
| C<sub>or</sub> | 31.5 kN |
| C<sub>u</sub> | 2.05 kN |
| f<sub>0</sub> | 16.5 kN |
| Speed | 2900 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 96.5mm |
| d<sub>a</sub> Max. | 99mm |
| D<sub>a</sub> Max. | 118.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.554 kg |
