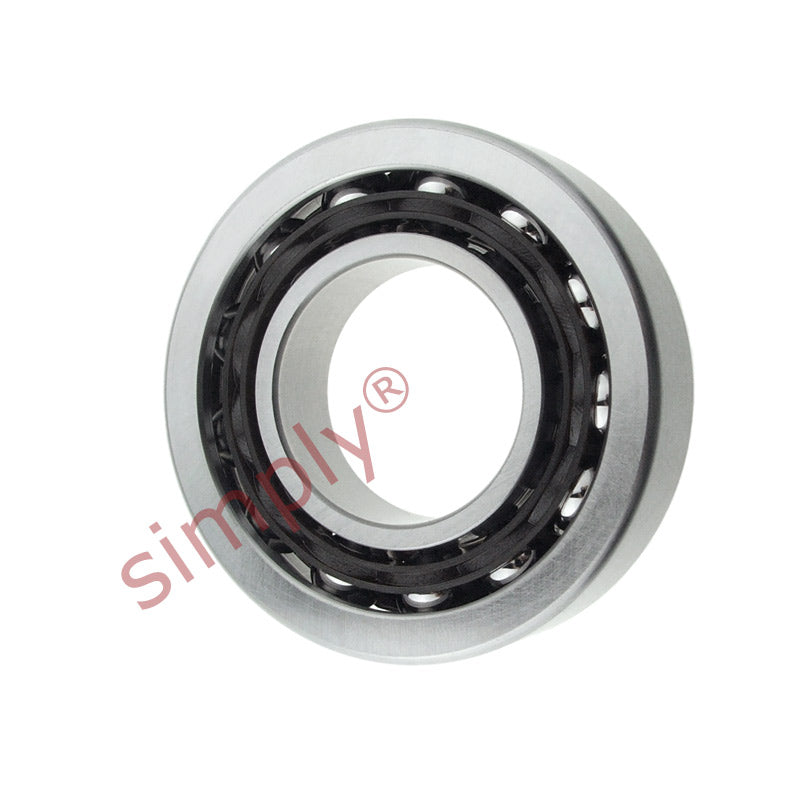

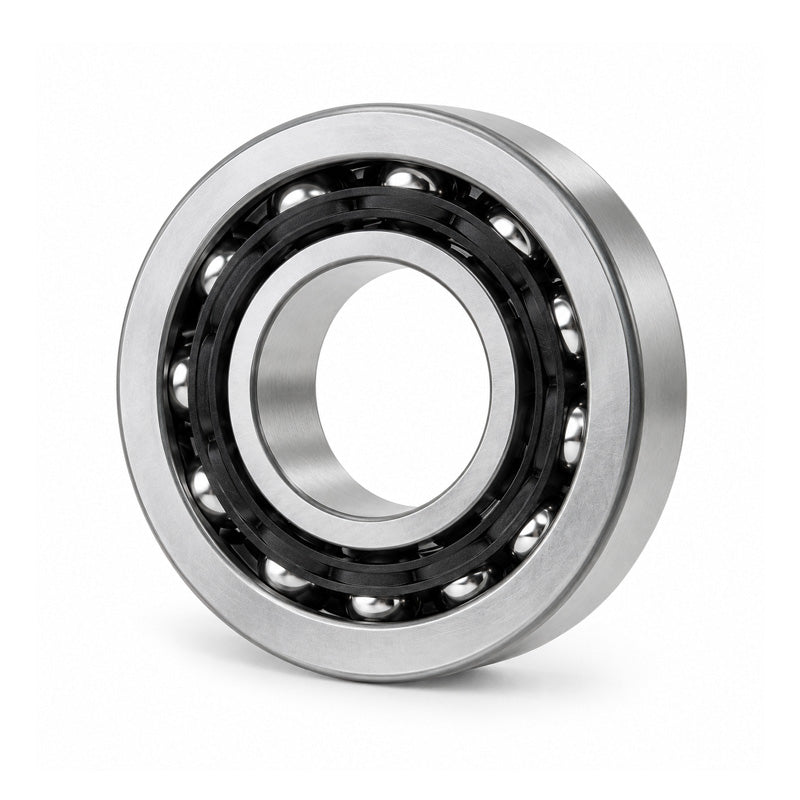

Budget 7004 Single Row Angular Contact Open Ball Bearing 20x42x12mm

Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Note: Due to differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Equivalent: 7004B 7104

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

20mm

Outside Diameter:

42mm

Width:

12mm

Seals / Shields:

None

Clearance:

* Standard
