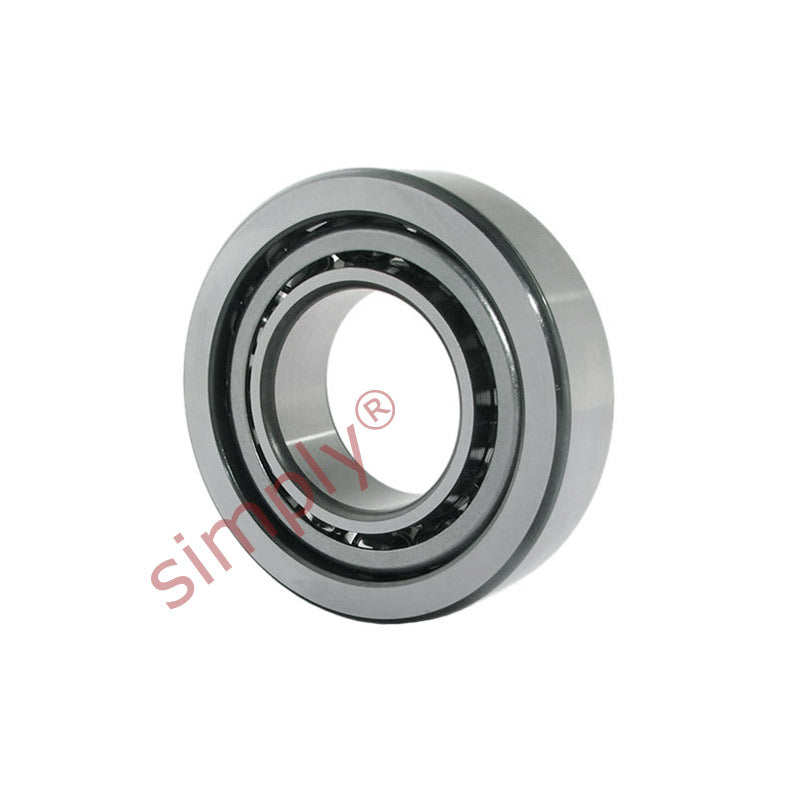

SKF 7210BECBM Single Row Angular Contact Ball Bearing 50x90x20mm
SKF 7210BECBM Single Row Angular Contact Ball Bearing 50x90x20mm
Regular price
€141,95
ex VAT
Regular price
Sale price
€141,95
ex VAT
Equivalent to: 7210BECBM
In stock
Price Break
4+
€107,56
8+
€101,52
12+
€100,31
16+
€99,10
25+
€97,90
50+
€96,69
99+
€90,64
199+
€89,44
249+
€88,23
499+
€87,02
999+
€84,60
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7210BECBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7210BECBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 20mm |
| Dynamic load Cr | 40 kN |
| Static load Cor | 31 kN |
| Fatigue load limit Pu | 1.32 kN |
| Reference speed | 9000 rpm |
| Limit speed | 9000 rpm |
| Weight | 0.51 kg |
| d1 | 65.8mm |
| d2 | 57.7mm |
| D1 | 75.2mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| a | 39mm |
| da min | 57mm |
| Da max | 83mm |
| Db max | 85.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
