SKU: 7221BECBM-SKF

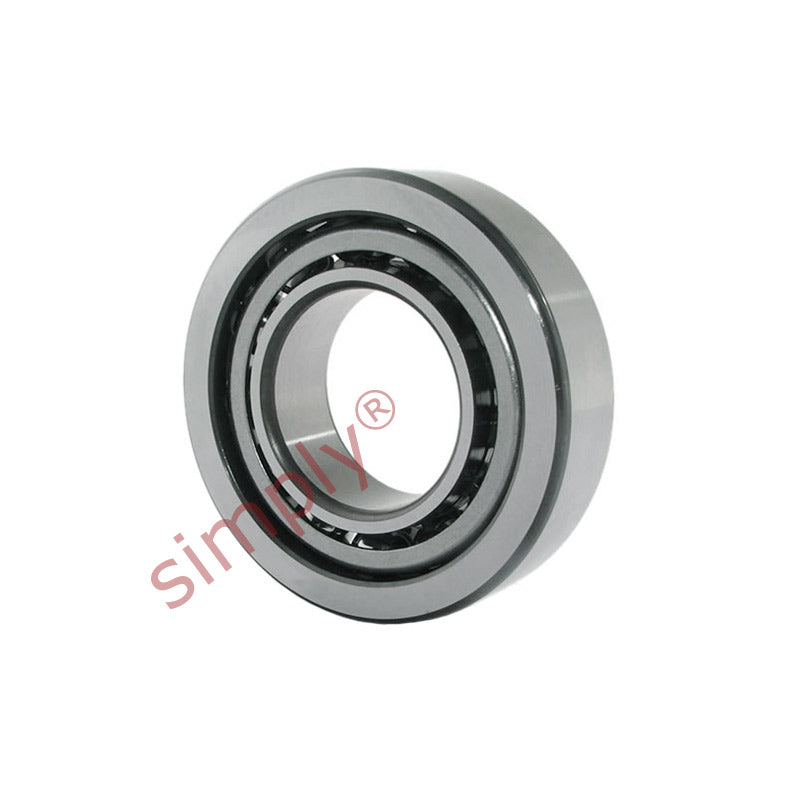

SKF 7221BECBM Single Row Angular Contact Ball Bearing 105x190x36mm
SKF 7221BECBM Single Row Angular Contact Ball Bearing 105x190x36mm
Regular price
€561,41
ex VAT
Regular price
Sale price
€561,41
ex VAT
Equivalent to: 7221BECBM
In stock
Price Break
10+
€499,65
19+
€471,58
29+
€465,97
39+
€460,36
49+
€454,74
74+
€449,13
99+
€421,06
199+
€415,44
249+
€409,83
499+
€404,22
999+
€392,99
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7221BECBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7221BECBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 190mm
- Width:
- 36mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 105mm |
|---|---|
| D | 190mm |
| B | 36mm |
| Dynamic load Cr | 148 kN |
| Static load Cor | 137 kN |
| Fatigue load limit Pu | 4.8 kN |
| Reference speed | 3800 rpm |
| Limit speed | 4000 rpm |
| Weight | 4.18 kg |
| d1 | 138mm |
| d2 | 121.2mm |
| D1 | 159.1mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 80mm |
| da min | 117mm |
| Da max | 178mm |
| Db max | 183mm |
| ra max | 2mm |
| rb max | 1mm |
