SKU: 7238BCBM-SKF

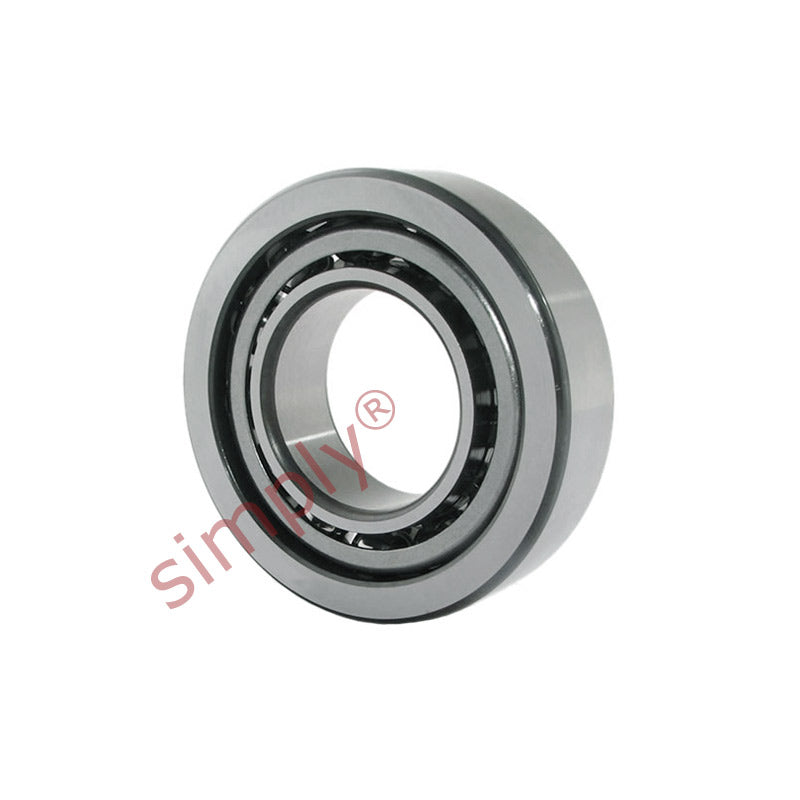

SKF 7238BCBM Single Row Angular Contact Ball Bearing 190x340x55mm
SKF 7238BCBM Single Row Angular Contact Ball Bearing 190x340x55mm
Regular price
€3.098,95
ex VAT
Regular price
Sale price
€3.098,95
ex VAT
Equivalent to: 7238BCBM
In stock
Price Break
4+
€2.360,10
8+
€2.227,51
12+
€2.201,00
16+
€2.174,48
25+
€2.147,96
50+
€2.121,44
99+
€1.988,85
199+
€1.962,33
249+
€1.935,82
499+
€1.909,30
999+
€1.856,26
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7238BCBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7238BCBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 190mm
- Outside Diameter:
- 340mm
- Width:
- 55mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 190mm |
|---|---|
| D | 340mm |
| B | 55mm |
| Dynamic load Cr | 307 kN |
| Static load Cor | 405 kN |
| Fatigue load limit Pu | 10.4 kN |
| Reference speed | 2000 rpm |
| Limit speed | 2200 rpm |
| Weight | 21.9 kg |
| d1 | 250.4mm |
| d2 | 224.1mm |
| D1 | 285.4mm |
| r1r2 min | 4mm |
| r3r4 min | 1.5mm |
| a | 139mm |
| da min | 207mm |
| Da max | 323mm |
| Db max | 331mm |
| ra max | 3mm |
| rb max | 1.5mm |
