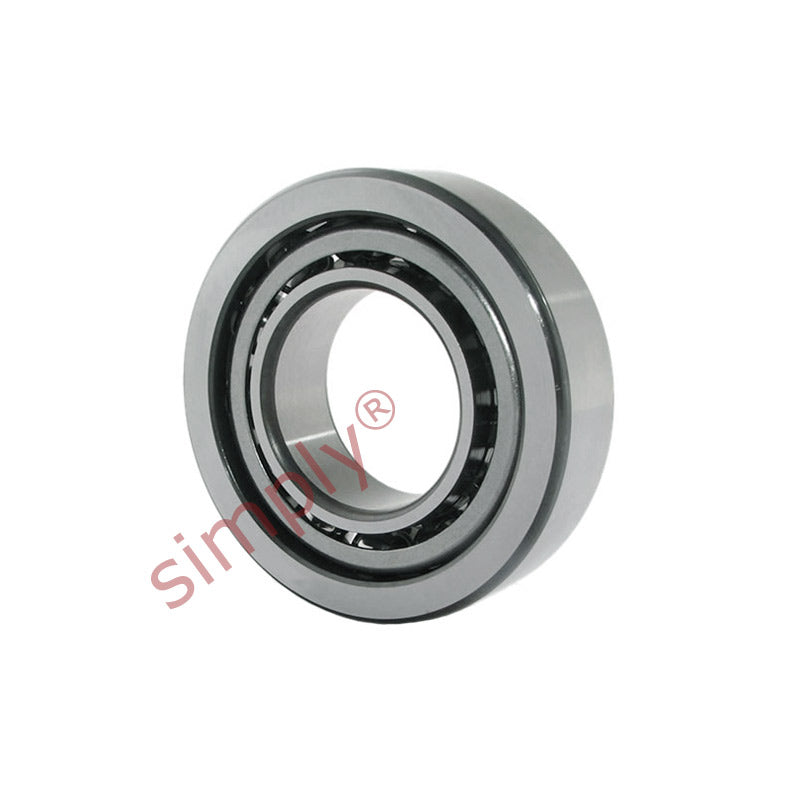

SKF 7244BCBM Single Row Angular Contact Ball Bearing 220x400x65mm
SKF 7244BCBM Single Row Angular Contact Ball Bearing 220x400x65mm
Regular price
€4.969,95
ex VAT
Regular price
Sale price
€4.969,95
ex VAT
Equivalent to: 7244BCBM
In stock
Price Break
4+
€3.784,71
8+
€3.572,08
12+
€3.529,56
16+
€3.487,03
25+
€3.444,51
50+
€3.401,98
99+
€3.189,36
199+
€3.146,83
249+
€3.104,31
499+
€3.061,78
999+
€2.976,73
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7244BCBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7244BCBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 400mm
- Width:
- 65mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 220mm |
|---|---|
| D | 400mm |
| B | 65mm |
| Dynamic load Cr | 390 kN |
| Static load Cor | 560 kN |
| Fatigue load limit Pu | 13.4 kN |
| Reference speed | 1800 rpm |
| Limit speed | 1800 rpm |
| Weight | 35.2 kg |
| d1 | 291.1mm |
| d2 | 259.1mm |
| D1 | 333.4mm |
| r1r2 min | 4mm |
| r3r4 min | 1.5mm |
| a | 164mm |
| da min | 237mm |
| Da max | 383mm |
| Db max | 391mm |
| ra max | 3mm |
| rb max | 1.5mm |
