SKU: 7E-HK1412-NTN

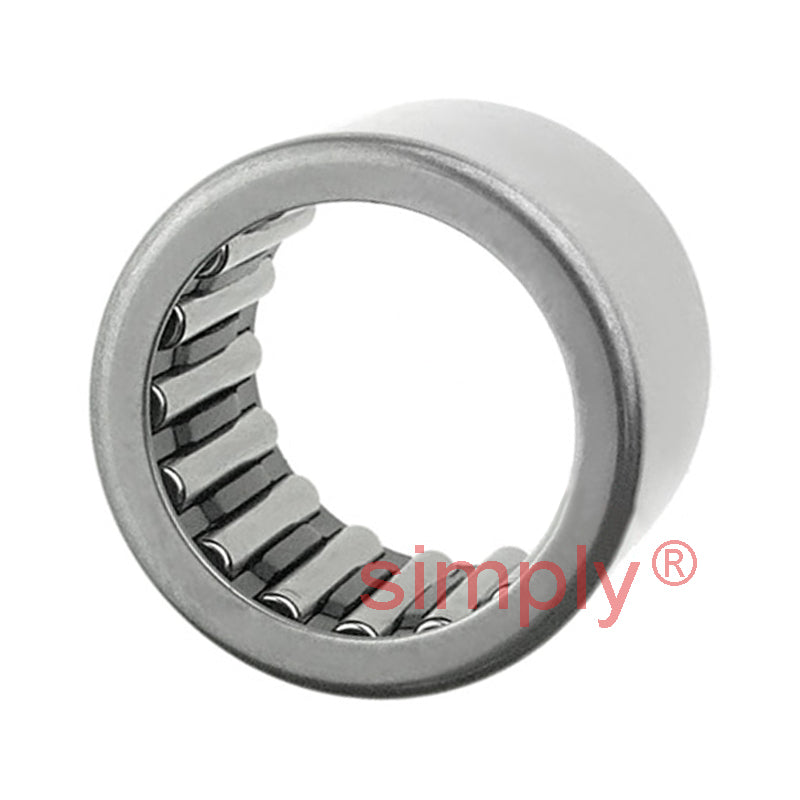

NTN 7E-HK1412 Drawn Cup Needle Roller Bearing with Open End and Hardened Inner Ring 14x20x12mm
NTN 7E-HK1412 Drawn Cup Needle Roller Bearing with Open End and Hardened Inner Ring 14x20x12mm
Regular price
€5,68
ex VAT
Regular price
Sale price
€5,68
ex VAT
In stock
Price Break
5+
€5,62
10+
€5,40
20+
€5,28
50+
€5,11
100+
€5,00
500+
€4,71
1000+
€3,98
Couldn't load pickup availability
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 20mm
- Width:
- 12mm
Technical
Technical
| Fw - Inside diameter | 14mm |
|---|---|
| D - Outside diameter | 20mm |
| C - Width of bearing, drawn cup or outer ring | 12mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR10X14X13 |
| Cr - Dynamic load rating | 7.2 kN |
| C0r - Static load rating | 8.5 kN |
| N - Grease lubrication limit speed | 11000 tr/min |
| N - Oil lubrication limit speed | 17000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
