Branded 80-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
Branded 80-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
Regular price
€10,80
ex VAT
Regular price
Sale price
€10,80
ex VAT
Equivalent to: 80-3-OL
In stock
Price Break
10+
€9,61
19+
€9,07
29+
€8,96
39+
€8,86
49+
€8,75
74+
€8,64
99+
€8,10
199+
€7,99
249+
€7,88
499+
€7,78
999+
€7,56
Couldn't load pickup availability
Description
Description

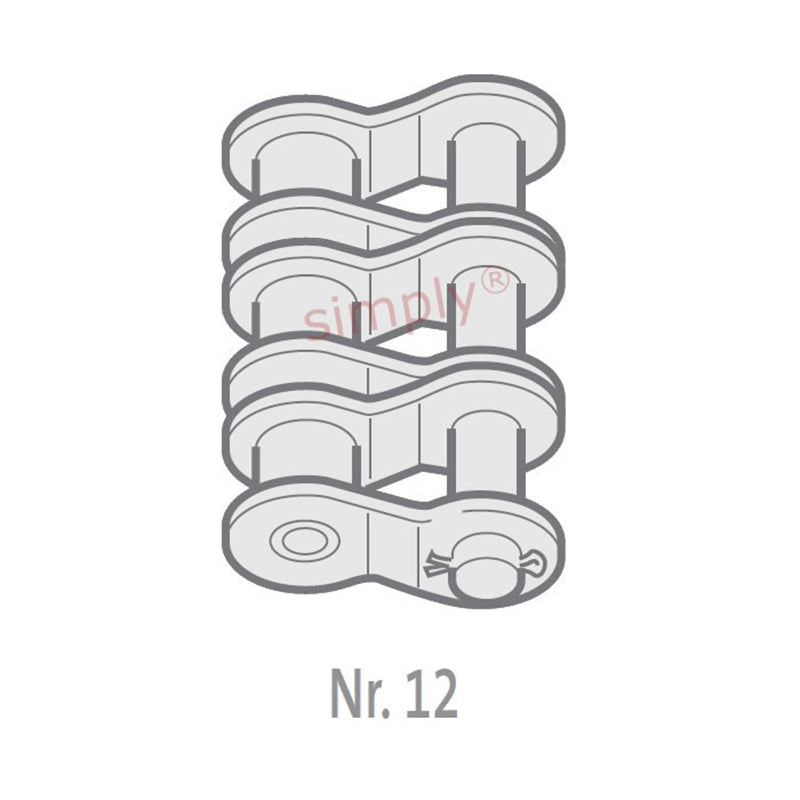

Branded OL / No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 80-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H1) | 90mm |
| Connecting Link Extension max (J) | 6.3mm |
| ISO606 Tensile Strength min | 166800 N |
| Weight | 29.29kg/m |
