SKU: 80-3-SD-NO12-RENOLD
Renold SD 80-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
Renold SD 80-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
Regular price
€47,47
ex VAT
Regular price
Sale price
€47,47
ex VAT
In stock
Price Break
10+
€42,25
19+
€39,87
29+
€39,40
39+
€38,93
49+
€38,45
74+
€37,98
99+
€35,60
199+
€35,13
249+
€34,65
499+
€34,18
999+
€33,23
Couldn't load pickup availability
Description
Description

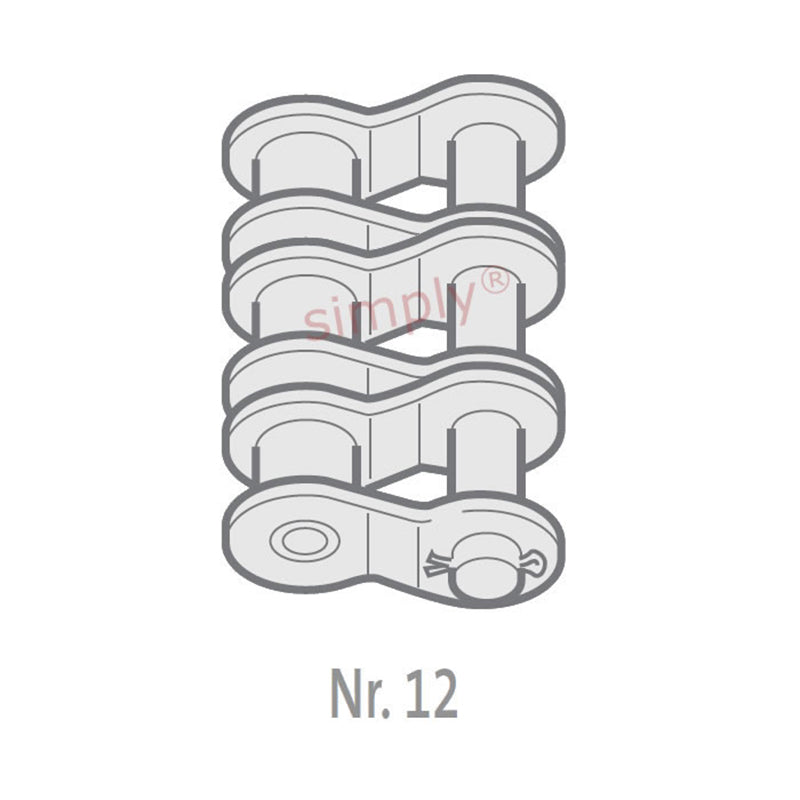

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H1) | 90mm |
| Connecting Link Extension max (J) | 6.3mm |
| ISO606 Tensile Strength min | 166800 N |
| Weight | 29.29kg/m |
