Renold Synergy 80-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
Renold Synergy 80-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
Regular price
€110,41
ex VAT
Regular price
Sale price
€110,41
ex VAT
In stock
Price Break
10+
€98,26
19+
€92,74
29+
€91,64
39+
€90,54
49+
€89,43
74+
€88,33
99+
€82,81
199+
€81,70
249+
€80,60
499+
€79,50
999+
€77,29
Couldn't load pickup availability
Share this product
Description
Description

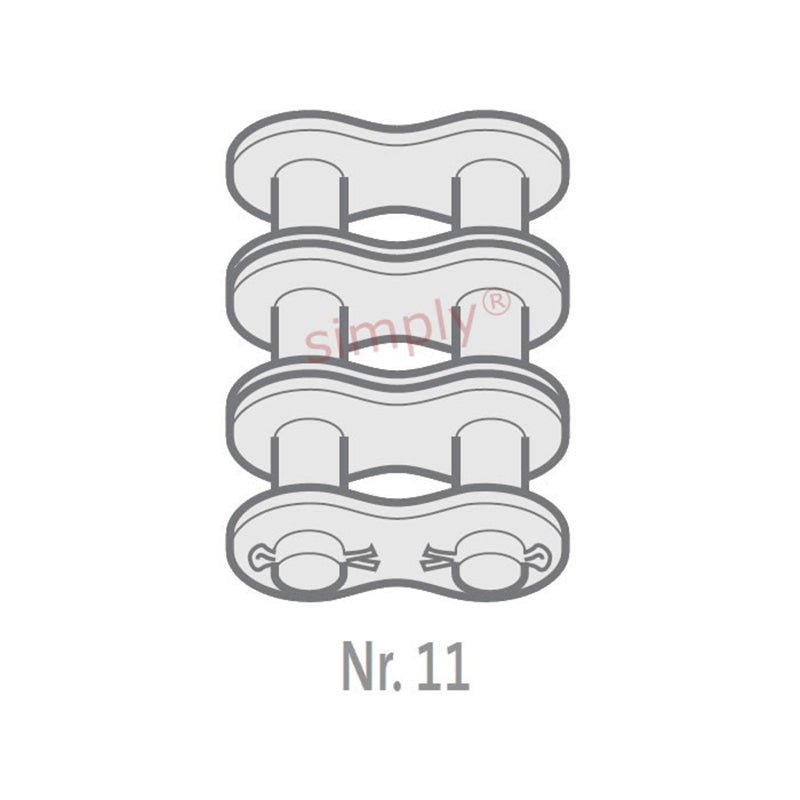

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.13mm |
| Plate Width Inner max (E) | 3.25mm |
| Plate Width Outer max (F) | 3.25mm |
| Pin Diameter max (G) | 7.94mm |
| Pin Length max (H2) | 91.2mm |
| Connecting Link Extension max (J) | 3mm |
| Transverse Pitch nom (K) | 29.29mm |
| ISO606 Tensile Strength min | 166800 N |
| Weight | 0.01kg/m |
