SKU: AGR-08-13-FLEX

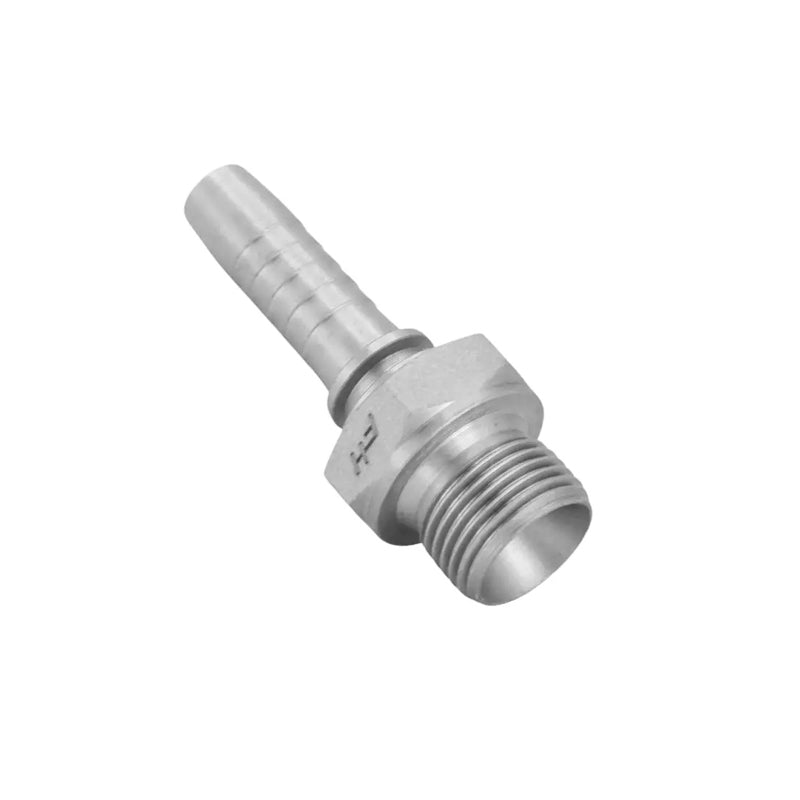

FLEXEQUIP/VOSS 1/2 inch BSP Male Two Piece Hose Fitting with 60 Degree Cone - Allow 2-3 Days
FLEXEQUIP/VOSS 1/2 inch BSP Male Two Piece Hose Fitting with 60 Degree Cone - Allow 2-3 Days
Regular price
€5,95
ex VAT
Regular price
Sale price
€5,95
ex VAT
In stock
Price Break
3+
€4,20
5+
€3,97
9+
€3,92
19+
€3,87
49+
€3,83
74+
€3,78
99+
€3,54
199+
€3,50
249+
€3,45
499+
€3,40
999+
€3,31
Share this product
Description
Description
FLEXEQUIP/VOSS Male Two Piece Hose Fitting with 60 Degree Cone: These hose fittings are versatile and durable parallel male hose fitting, commonly used in the UK and Ireland for medium to high-pressure hydraulic applications. Available with either BSP or NPT thread, this fitting ensures a reliable, leak-free connection. BSP versions conform to ISO 12151-6 (ISO 8434-6) standards, while NPT fittings feature an NPTF tapered thread and meet SAE J 516 specifications. Designed for demanding environments, this fitting provides optimal performance and is ideal for a wide range of hydraulic systems.
Benefits: High compatibility, leek-free connections, durability under pressure
- Brand / Quality:
- FLEXEQUIP/VOSS - High Quality
- Thread Size:
- 1/2 inch BSP
- Length:
- 61mm
- Type:
- AGR
- Angle:
- * Straight
- Cone Angle:
- 60 degrees
Technical
Technical
| Hose Bore | 1/2 inch |
|---|---|
| Thread (d2) | 1/2 inch |
| DN Size | 12mm |
| Total Length (lg) | 61mm |
| Length (lh) | 17mm |
| Cut Off (lx) | 31mm |
| Bore Size (dx) | 10mm |
| Nut Size (SW) | 27mm |
| Angle | * Straight degrees |
| Cone Angle | 60 degrees |
| Weight | 0.087 kg |
