SKU: AGR-24-38-FLEX

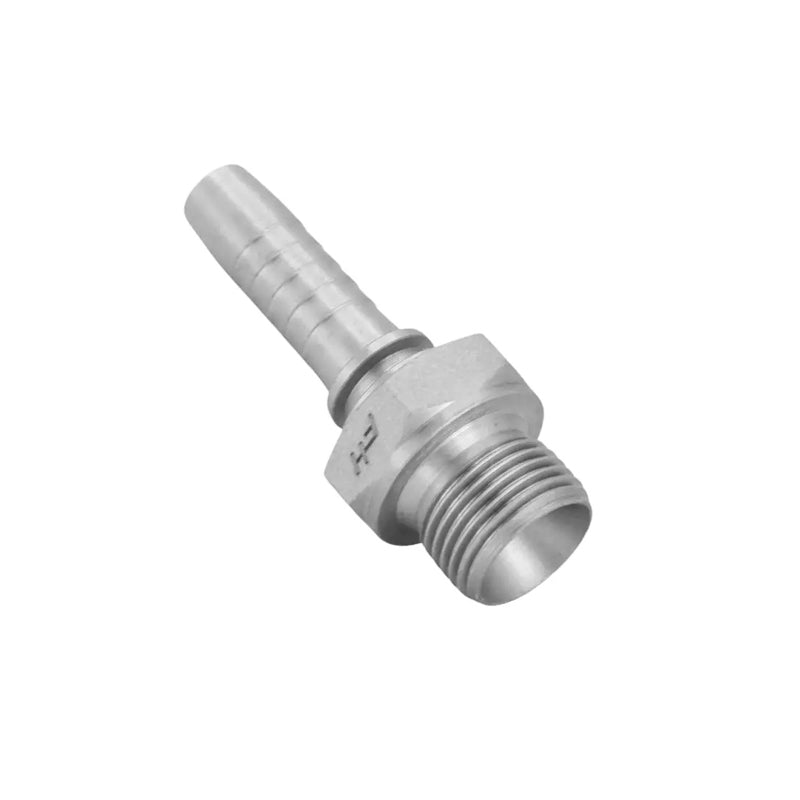

FLEXEQUIP/VOSS 1-1/2 inch BSP Male Two Piece Hose Fitting with 60 Degree Cone - Allow 2-3 Days
FLEXEQUIP/VOSS 1-1/2 inch BSP Male Two Piece Hose Fitting with 60 Degree Cone - Allow 2-3 Days
Regular price
€21,95
ex VAT
Regular price
Sale price
€21,95
ex VAT
In stock
Price Break
3+
€16,08
5+
€15,17
9+
€14,99
19+
€14,81
49+
€14,63
74+
€14,45
99+
€13,55
199+
€13,37
249+
€13,19
499+
€13,01
999+
€12,64
Share this product
Description
Description
FLEXEQUIP/VOSS Male Two Piece Hose Fitting with 60 Degree Cone: These hose fittings are versatile and durable parallel male hose fitting, commonly used in the UK and Ireland for medium to high-pressure hydraulic applications. Available with either BSP or NPT thread, this fitting ensures a reliable, leak-free connection. BSP versions conform to ISO 12151-6 (ISO 8434-6) standards, while NPT fittings feature an NPTF tapered thread and meet SAE J 516 specifications. Designed for demanding environments, this fitting provides optimal performance and is ideal for a wide range of hydraulic systems.
Benefits: High compatibility, leek-free connections, durability under pressure
- Brand / Quality:
- FLEXEQUIP/VOSS - High Quality
- Thread Size:
- 1-1/2 inch BSP
- Length:
- 104mm
- Type:
- AGR
- Angle:
- * Straight
- Cone Angle:
- 60 degrees
Technical
Technical

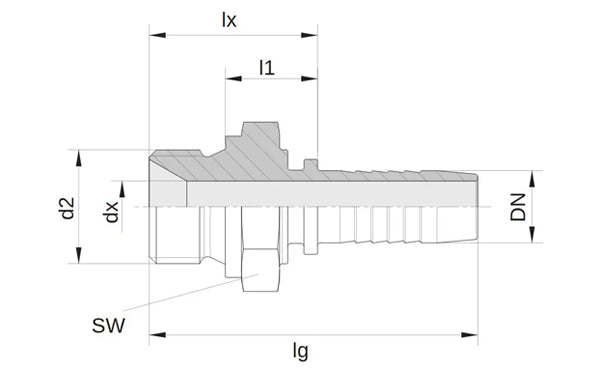

| Hose Bore | 1-1/2 inch |
|---|---|
| Thread (d2) | 1-1/2 inch |
| DN Size | 38mm |
| Total Length (lg) | 104mm |
| Length (lh) | 24mm |
| Cut Off (lx) | 46mm |
| Bore Size (dx) | 32mm |
| Nut Size (SW) | 55mm |
| Angle | * Straight degrees |
| Cone Angle | 60 degrees |
| Weight | 0.519 kg |
