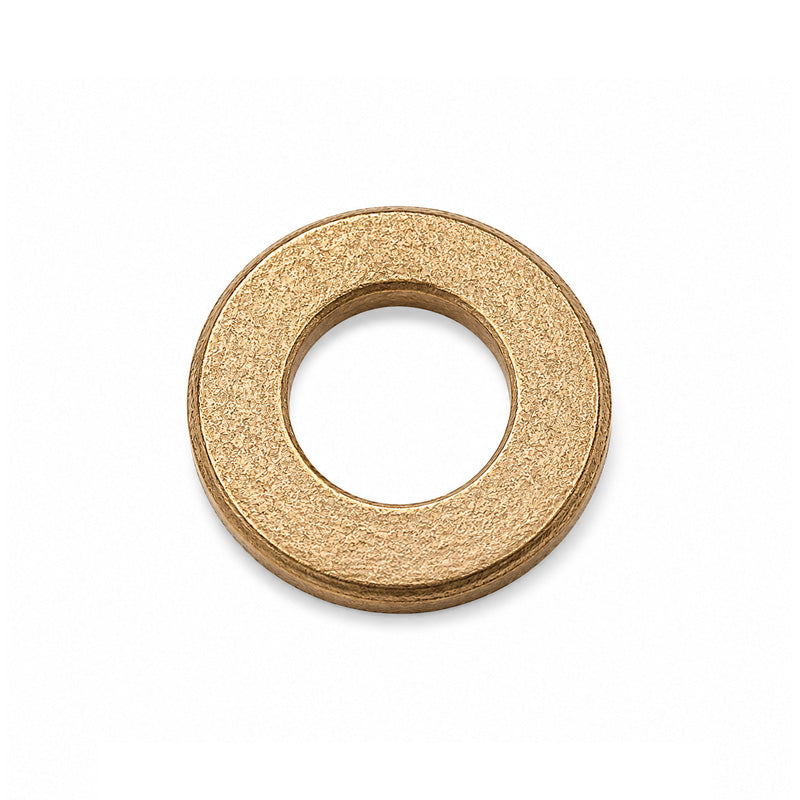

AW041001 Oil Filled Bronze Thrust Washer 1/4x5/8x1/16 inch

Oilite® Bronze Washers: Made in a variety of styles from bronze, graphite and several other metallic powders formed to shape by the sintering process and then soaked in oil. These simple thrust washer style bearings have an extended range of applications but are particularly suited to function in the following conditions; extreme high/low temperatures¹, high/low speed applications, corrosive environments, low maintenance applications etc.
¹ These bushes are generally implanted with grease which has a temperature range of -20 to +90 deg C. Contact our Customer Support Team for more options to compensate for medium and wide range temperatures.
Benefits: Inexpensive, noiseless operation, self-lubrication, low maintenance costs.

Brand / Quality:

Oilite - High Quality

Inside Diameter:

6.35mm = 0.25 (1/4) inch

Outside Diameter:

15.88mm = 0.625 (5/8) inch

Width:

1.59mm = 0.063 (1/16) inch
