SKU: AX1226-MB

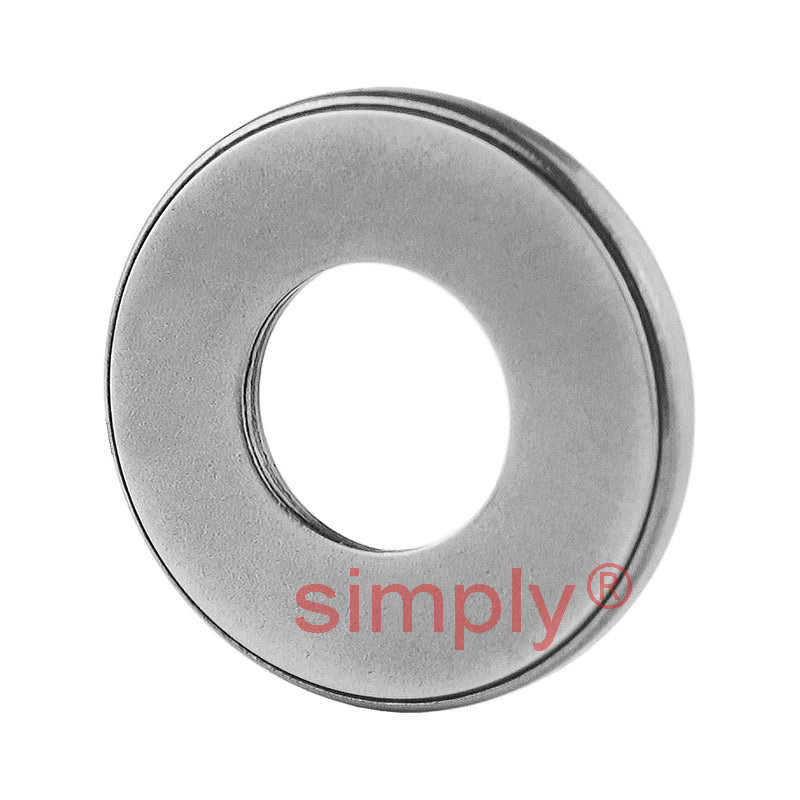

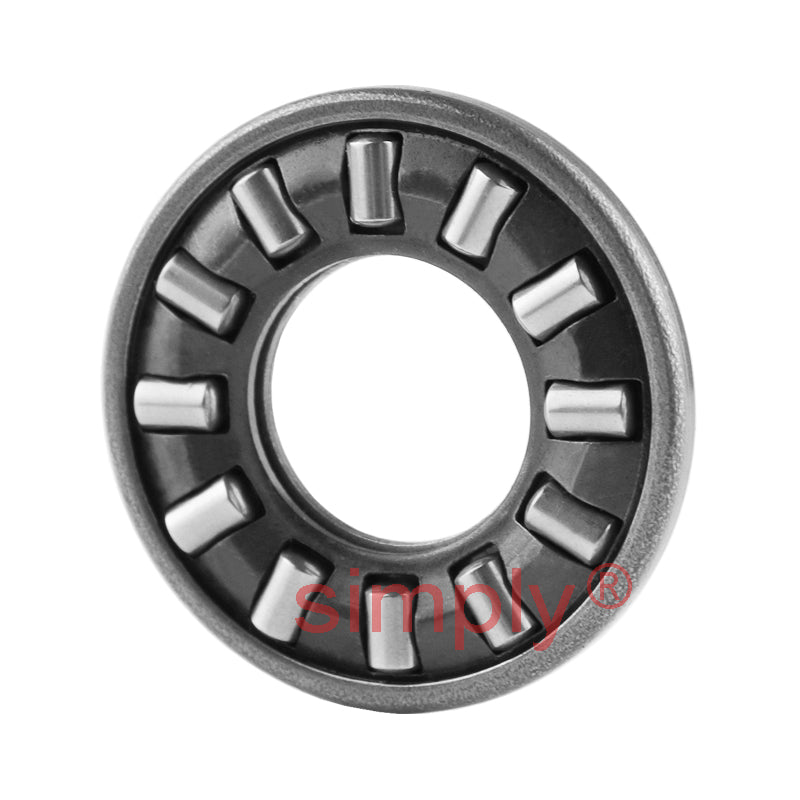

Major Brand AX1226 Thin Needle Roller Thrust Bearing 12x26x2.8mm
Major Brand AX1226 Thin Needle Roller Thrust Bearing 12x26x2.8mm
Regular price
€13,65
ex VAT
Regular price
Sale price
€13,65
ex VAT
In stock
Price Break
10+
€12,15
19+
€11,47
29+
€11,33
39+
€11,19
49+
€11,06
74+
€10,92
99+
€10,24
199+
€10,10
249+
€9,96
499+
€9,83
999+
€9,56
Couldn't load pickup availability
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 26mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 12mm |
|---|---|
| D | 26mm |
| B1 | 2.8mm |
| Eb | 15mm |
| Ea | 22.6mm |
| Dynamic load | 6.9 kN |
| Static load | 17.7 kN |
| Speed rating in oil | 13000 rpm |
| Mass | 0.006 kg |
