SKU: AX14190240-MB

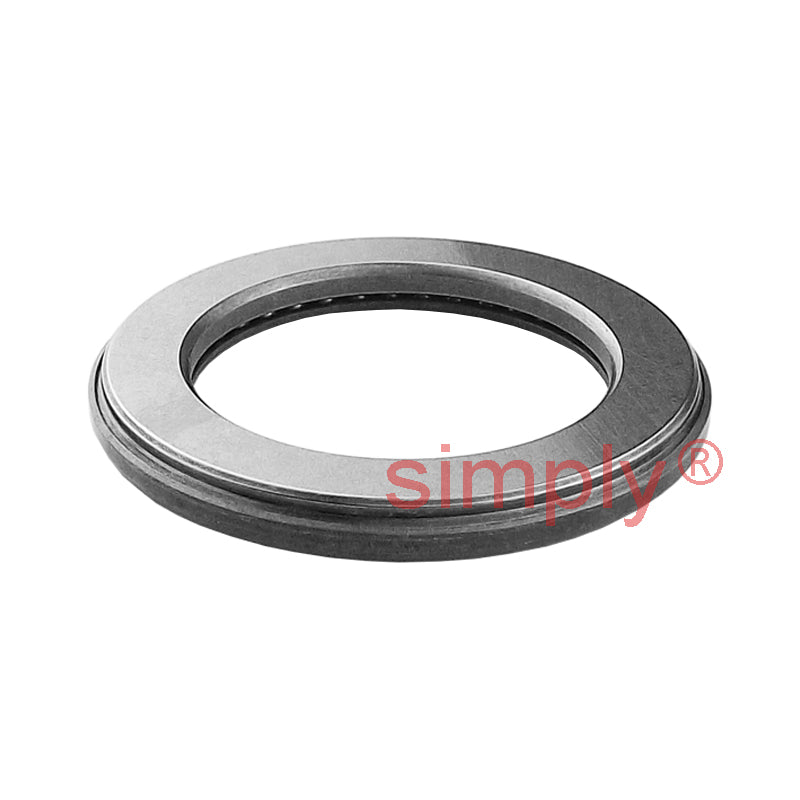

Major Brand AX14190240 Thick Needle Roller Thrust Bearing 190x240x14mm Allow 2-3 Days
Major Brand AX14190240 Thick Needle Roller Thrust Bearing 190x240x14mm Allow 2-3 Days
Regular price
€1.346,95
ex VAT
Regular price
Sale price
€1.346,95
ex VAT
In stock
Price Break
10+
€1.025,54
19+
€967,92
29+
€956,40
39+
€944,88
49+
€933,35
74+
€921,83
99+
€864,22
199+
€852,69
249+
€841,17
499+
€829,65
999+
€806,60
Share this product
Description
Description

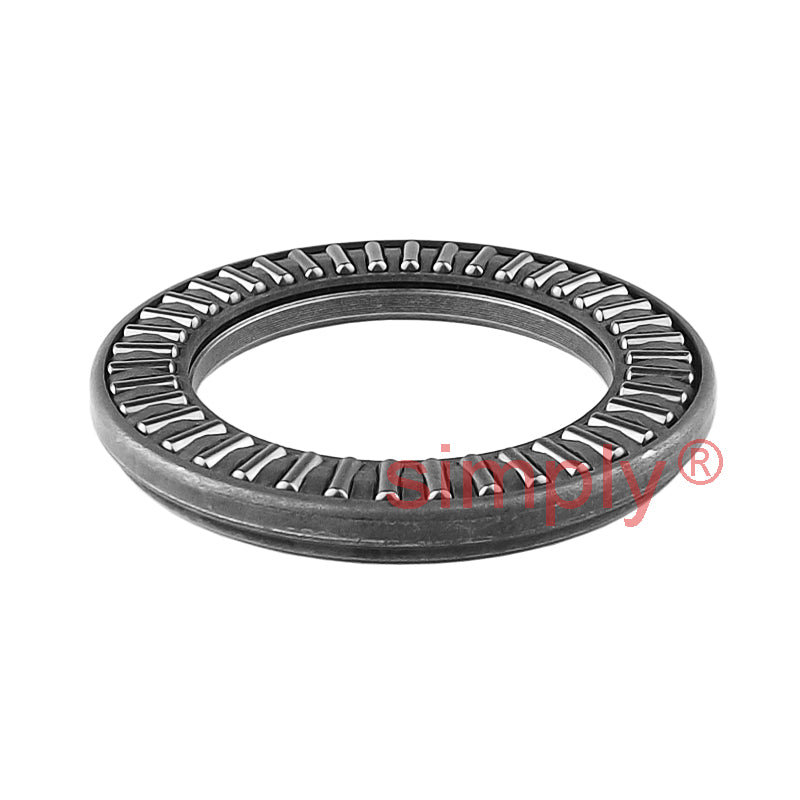

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 190mm
- Outside Diameter:
- 240mm
- Width:
- 14mm
Technical
Technical
| Dc1 | 190mm |
|---|---|
| D | 240mm |
| B1 | 14mm |
| Eb | 196mm |
| Ea | 232mm |
| Dynamic load | 230 kN |
| Static load | 1650 kN |
| Speed rating in oil | 1200 rpm |
| Mass | 1.4 kg |
