SKU: AX14190240-NADELLA

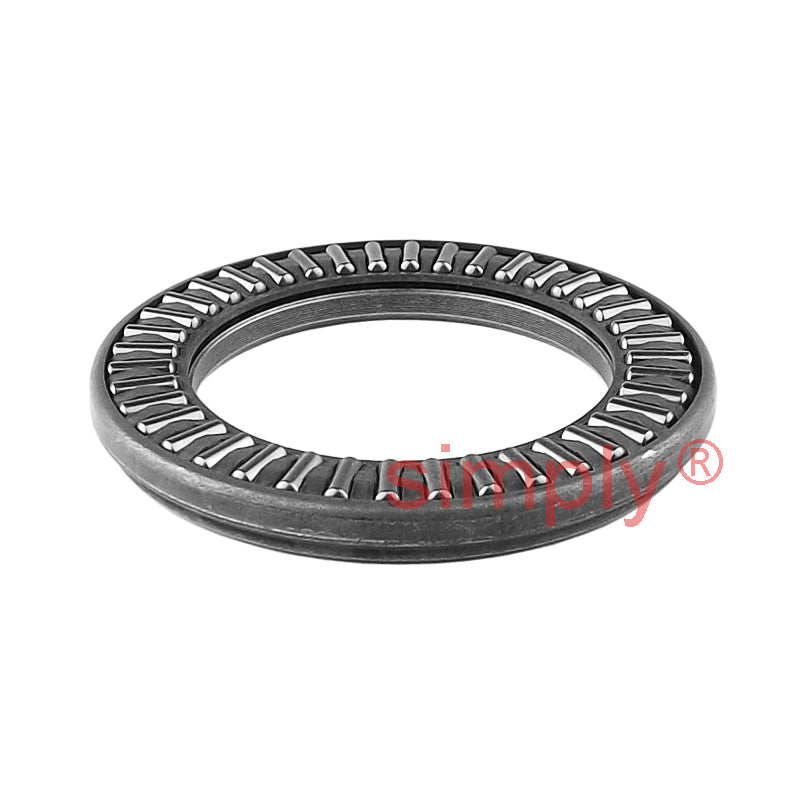

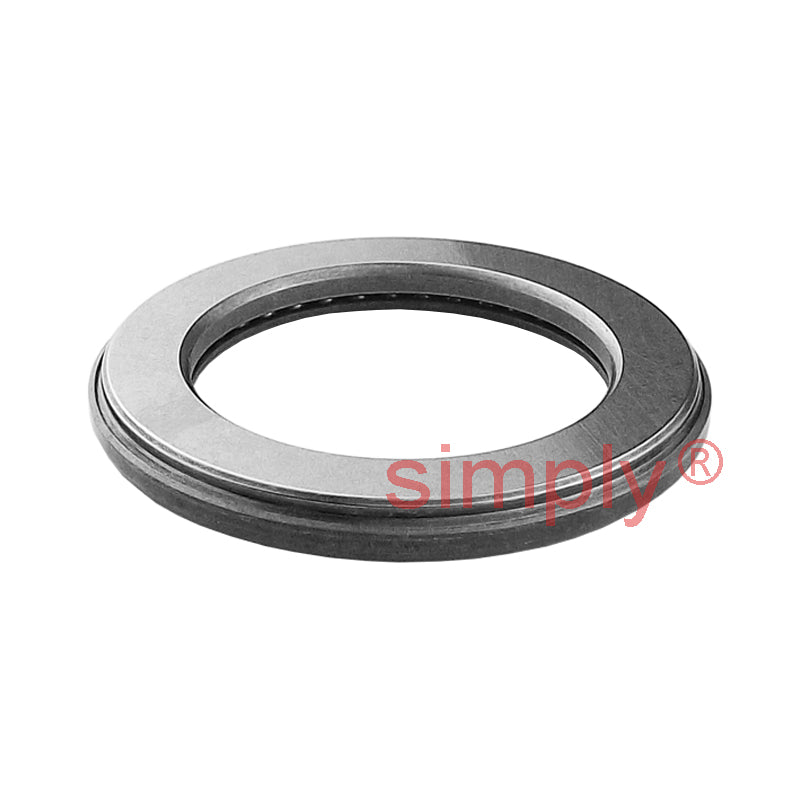

Nadella AX14190240 Thick Needle Roller Thrust Bearing 190x240x14mm Allow 2-3
Nadella AX14190240 Thick Needle Roller Thrust Bearing 190x240x14mm Allow 2-3
Out of stock
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 190mm
- Outside Diameter:
- 240mm
- Width:
- 14mm
Technical
Technical
| Dc1 | 190mm |
|---|---|
| D | 240mm |
| B1 | 14mm |
| Eb | 196mm |
| Ea | 232mm |
| Dynamic load | 230 kN |
| Static load | 1650 kN |
| Speed rating in oil | 1200 rpm |
| Mass | 1.4 kg |
