SKU: AX14220270-MB

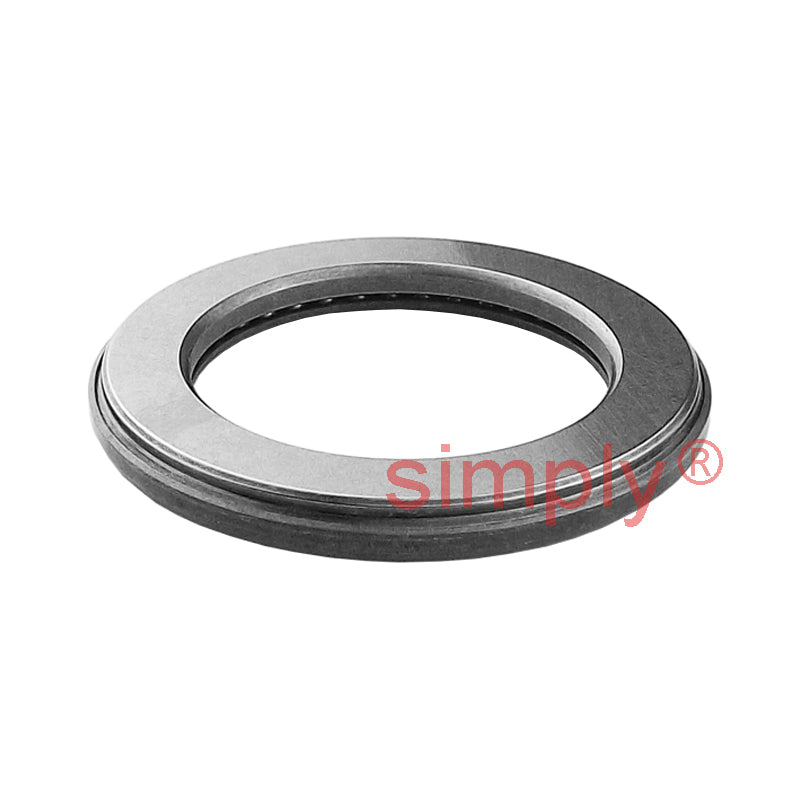

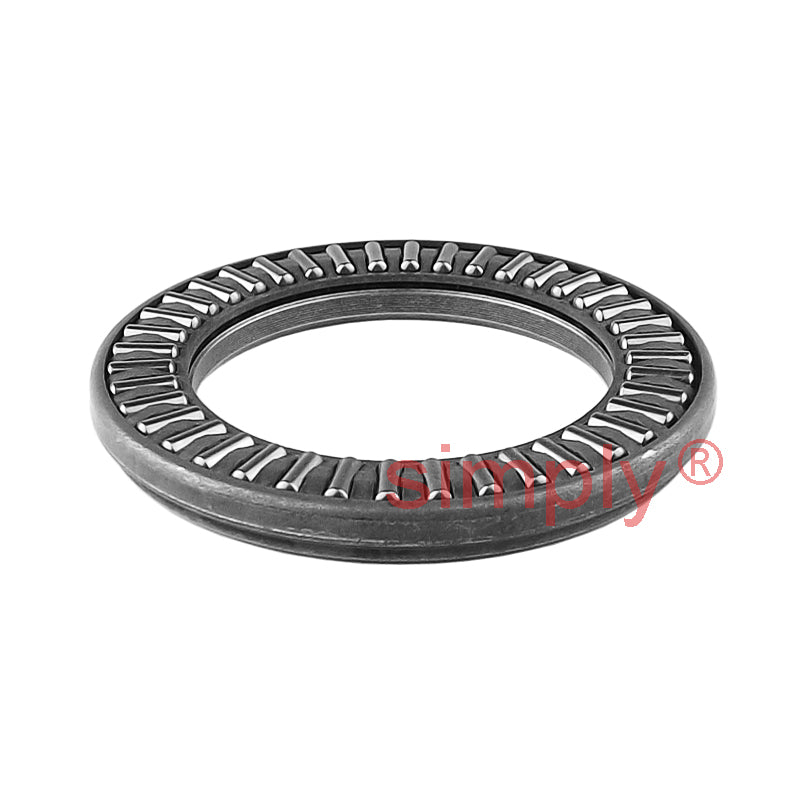

Major Brand AX14220270 Thick Needle Roller Thrust Bearing 220x270x14mm Allow 2-3 Days
Major Brand AX14220270 Thick Needle Roller Thrust Bearing 220x270x14mm Allow 2-3 Days
Regular price
€5.899,95
ex VAT
Regular price
Sale price
€5.899,95
ex VAT
In stock
Price Break
10+
€4.492,80
19+
€4.240,39
29+
€4.189,91
39+
€4.139,43
49+
€4.088,95
74+
€4.038,47
99+
€3.786,06
199+
€3.735,58
249+
€3.685,10
499+
€3.634,62
999+
€3.533,66
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 270mm
- Width:
- 14mm
Technical
Technical
| Dc1 | 220mm |
|---|---|
| D | 270mm |
| B1 | 14mm |
| Eb | 226mm |
| Ea | 262mm |
| Dynamic load | 248 kN |
| Static load | 1850 kN |
| Speed rating in oil | 1000 rpm |
| Mass | 1.6 kg |
