SKU: AX1528-MB

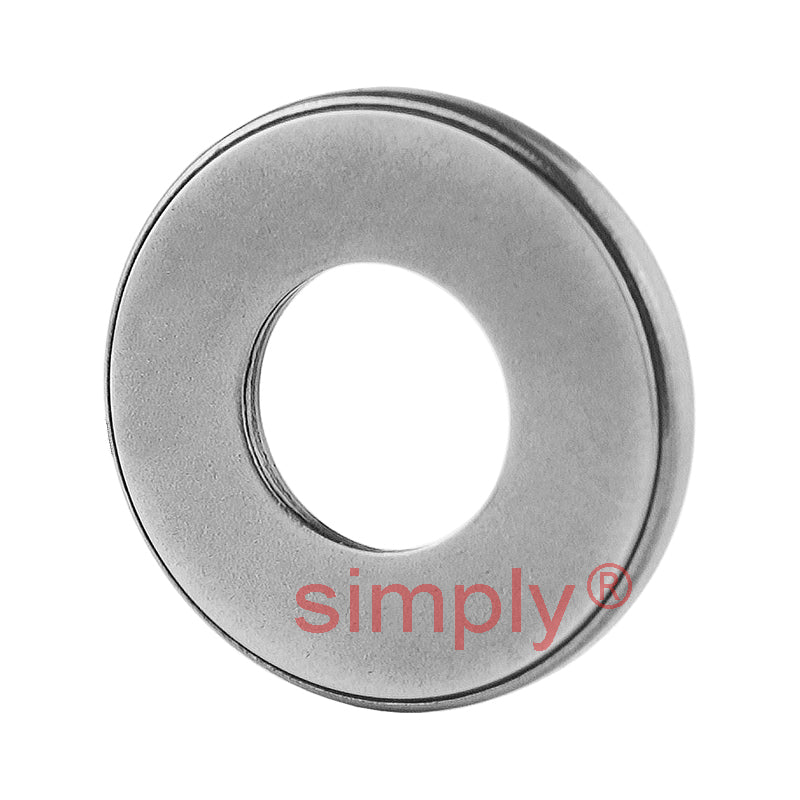

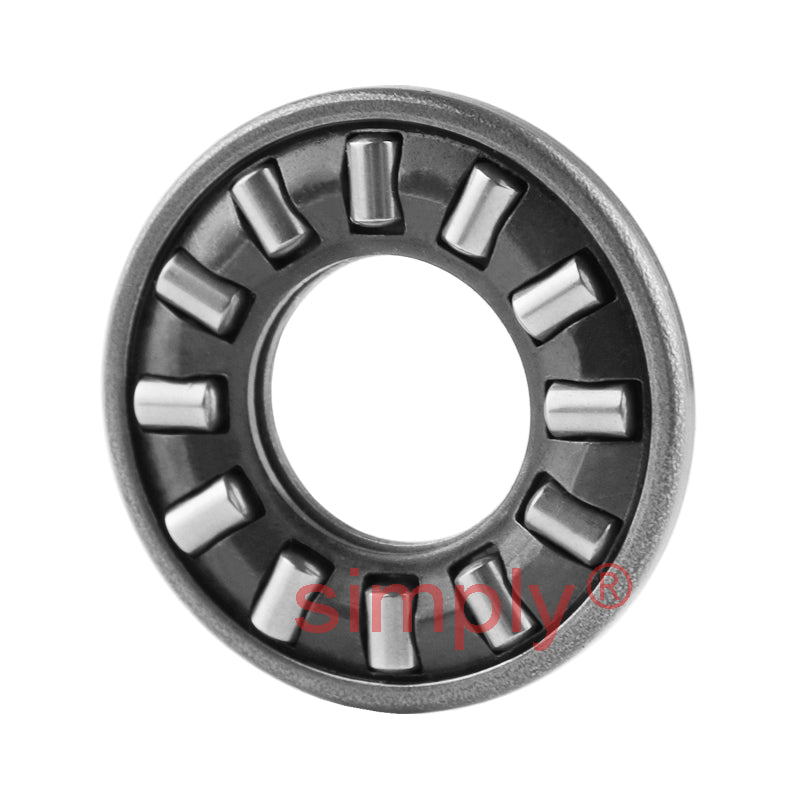

Major Brand AX1528 Thin Needle Roller Thrust Bearing 15x28x2.8mm
Major Brand AX1528 Thin Needle Roller Thrust Bearing 15x28x2.8mm
Regular price
€13,95
ex VAT
Regular price
Sale price
€13,95
ex VAT
In stock
Price Break
10+
€10,14
19+
€9,57
29+
€9,45
39+
€9,34
49+
€9,23
74+
€9,11
99+
€8,54
199+
€8,43
249+
€8,31
499+
€8,20
999+
€7,97
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 15mm |
|---|---|
| D | 28mm |
| B1 | 2.8mm |
| Eb | 17mm |
| Ea | 24.6mm |
| Dynamic load | 7.4 kN |
| Static load | 20 kN |
| Speed rating in oil | 11500 rpm |
| Mass | 0.007 kg |
