SKU: AX3.5614-NADELLA

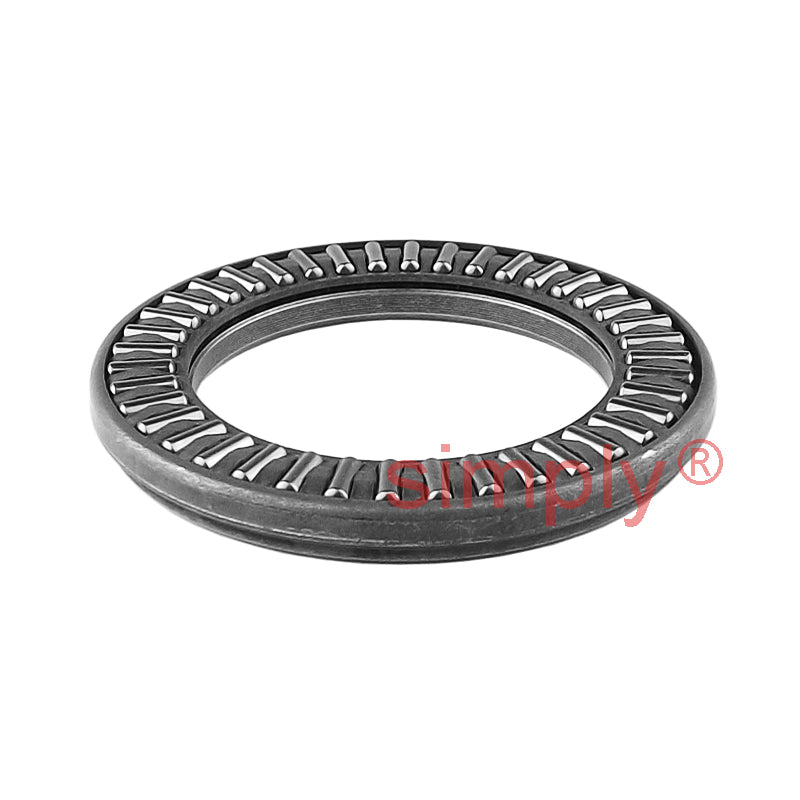

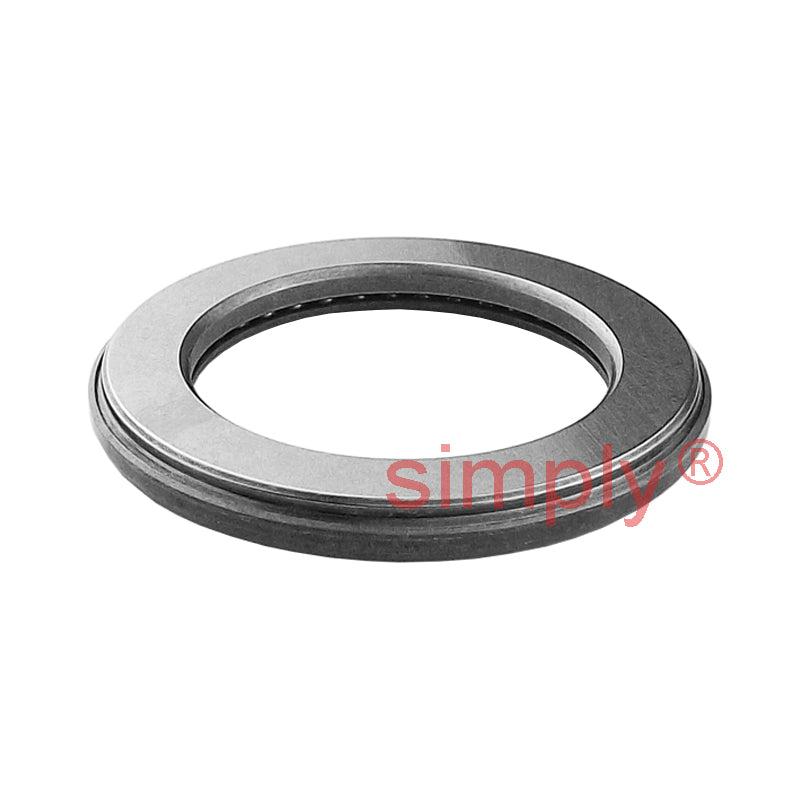

Nadella AX3.5614 Thick Needle Roller Thrust Bearing 6x14x3.5mm Allow 2-3 Day
Nadella AX3.5614 Thick Needle Roller Thrust Bearing 6x14x3.5mm Allow 2-3 Day
Regular price
€41,24
ex VAT
Regular price
Sale price
€41,24
ex VAT
In stock
Price Break
5+
€40,83
10+
€39,18
20+
€38,35
50+
€37,12
100+
€36,29
500+
€34,23
1000+
€28,87
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 14mm
- Width:
- 3.5mm
Technical
Technical
| Dc1 | 6mm |
|---|---|
| D | 14mm |
| B1 | 3.5mm |
| Eb | 7.3mm |
| Ea | 11.9mm |
| Dynamic load | 3.15 kN |
| Static load | 6.35 kN |
| Speed rating in oil | 22000 rpm |
| Mass | 0.002 kg |
