SKU: AX3.5715-NADELLA

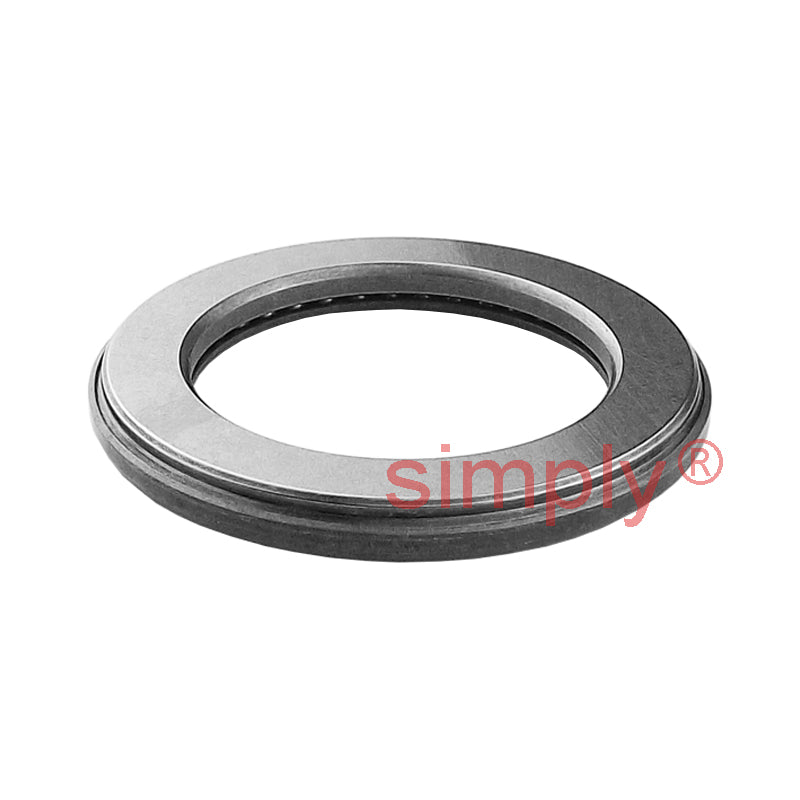

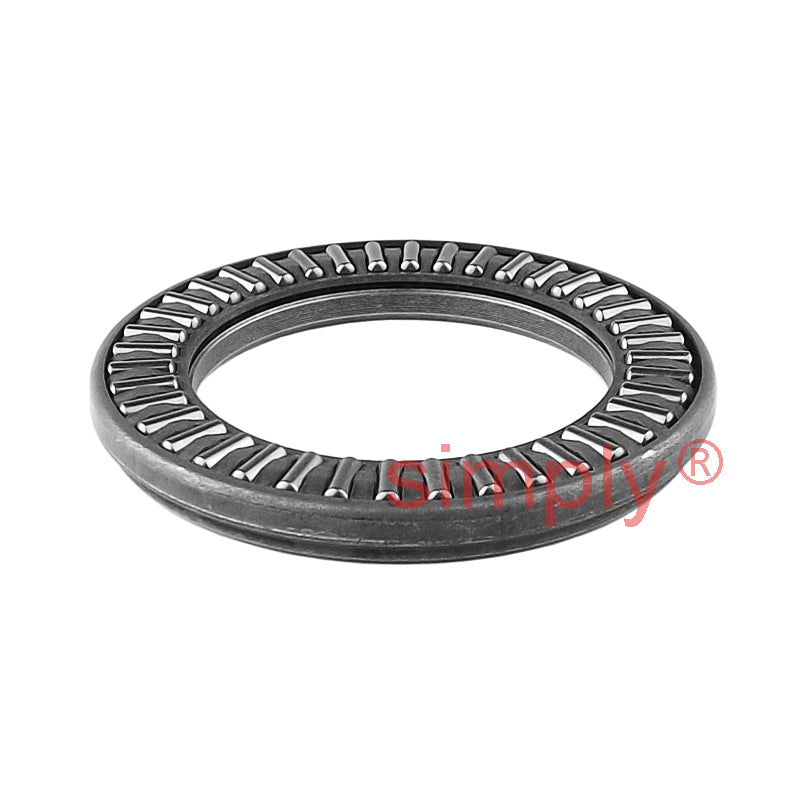

Nadella AX3.5715 Thick Needle Roller Thrust Bearing 7x15x3.5mm Allow 2-3 Day
Nadella AX3.5715 Thick Needle Roller Thrust Bearing 7x15x3.5mm Allow 2-3 Day
Regular price
€90,30
ex VAT
Regular price
Sale price
€90,30
ex VAT
In stock
Price Break
5+
€89,40
10+
€85,79
20+
€83,98
50+
€81,27
100+
€79,46
500+
€74,95
1000+
€63,21
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 15mm
- Width:
- 3.5mm
Technical
Technical
| Dc1 | 7mm |
|---|---|
| D | 15mm |
| B1 | 3.5mm |
| Eb | 8.3mm |
| Ea | 12.9mm |
| Dynamic load | 3.55 kN |
| Static load | 7.6 kN |
| Speed rating in oil | 22000 rpm |
| Mass | 0.003 kg |
