SKU: AX3.5816-MB

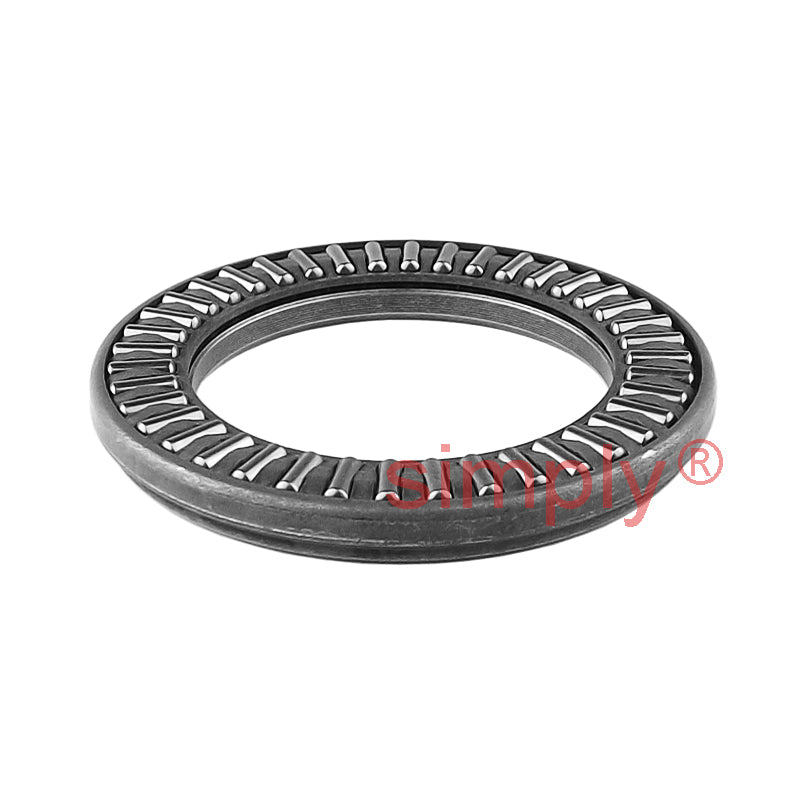

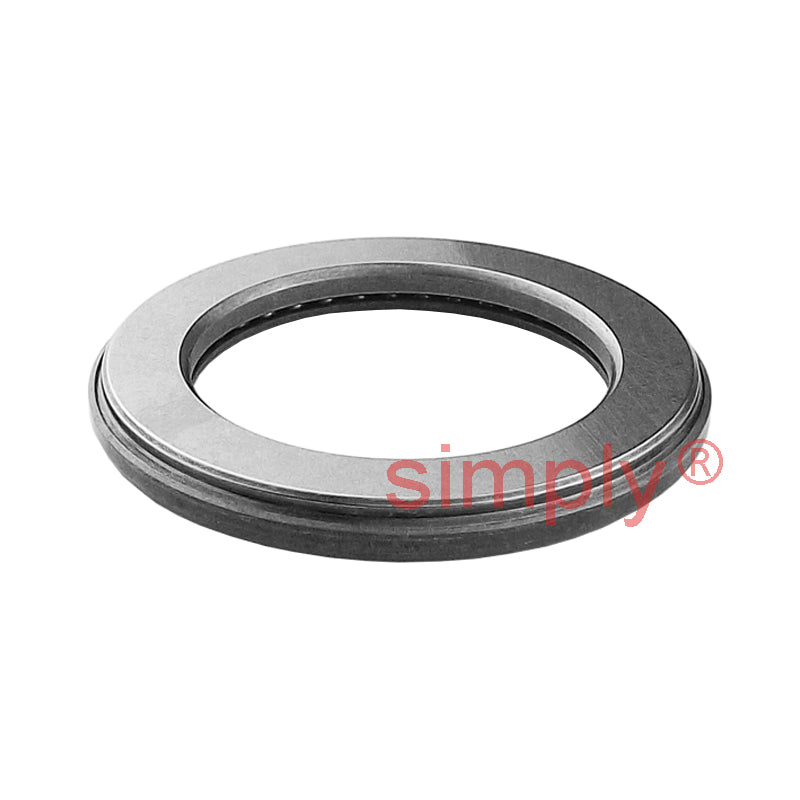

Major Brand AX3.5816 Thick Needle Roller Thrust Bearing 8x16x3.5mm Allow 2-3 Days
Major Brand AX3.5816 Thick Needle Roller Thrust Bearing 8x16x3.5mm Allow 2-3 Days
Regular price
€75,95
ex VAT
Regular price
Sale price
€75,95
ex VAT
In stock
Price Break
10+
€57,82
19+
€54,57
29+
€53,92
39+
€53,27
49+
€52,62
74+
€51,97
99+
€48,72
199+
€48,07
249+
€47,42
499+
€46,77
999+
€45,48
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Width:
- 3.5mm
Technical
Technical
| Dc1 | 8mm |
|---|---|
| D | 16mm |
| B1 | 3.5mm |
| Eb | 9.3mm |
| Ea | 13.9mm |
| Dynamic load | 3.7 kN |
| Static load | 8.3 kN |
| Speed rating in oil | 22000 rpm |
| Mass | 0.003 kg |
