SKU: AX3.5917-MB

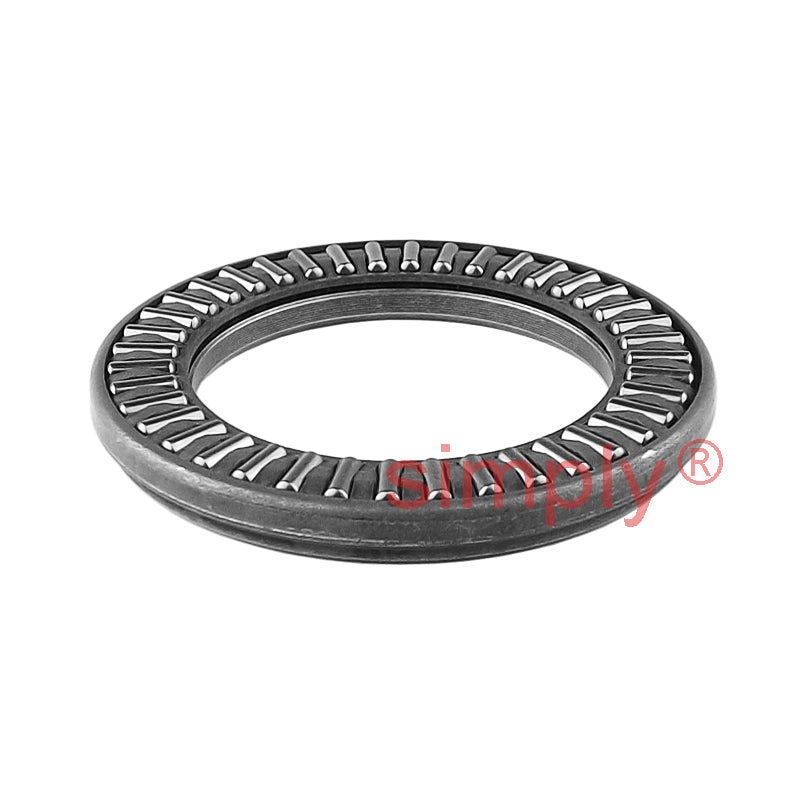

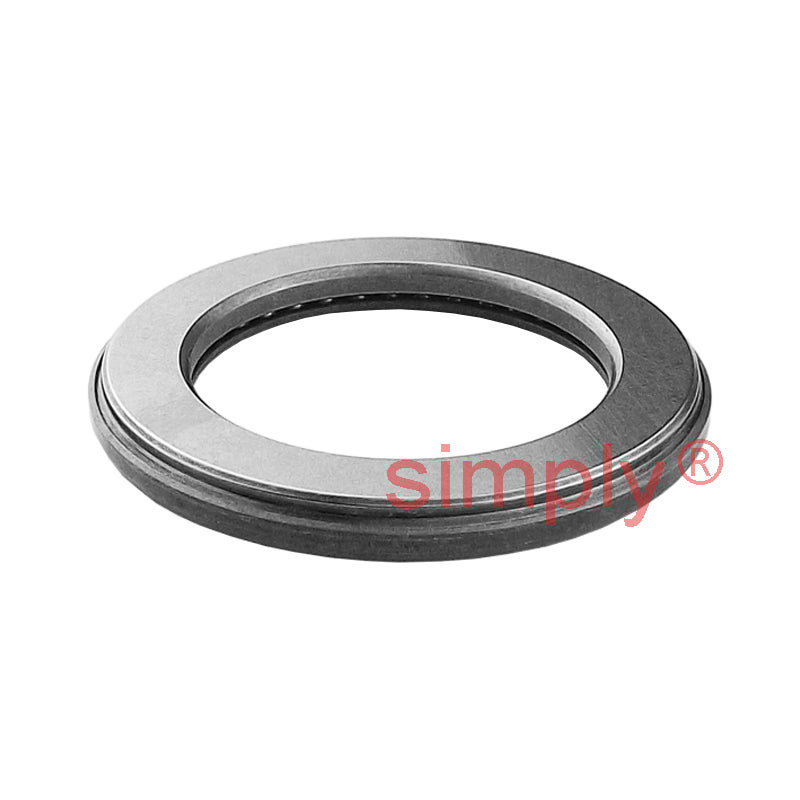

Major Brand AX3.5917 Thick Needle Roller Thrust Bearing 9x17x3.5mm Allow 2-3 Days
Major Brand AX3.5917 Thick Needle Roller Thrust Bearing 9x17x3.5mm Allow 2-3 Days
Regular price
€85,95
ex VAT
Regular price
Sale price
€85,95
ex VAT
In stock
Price Break
10+
€65,25
19+
€61,58
29+
€60,85
39+
€60,12
49+
€59,38
74+
€58,65
99+
€54,98
199+
€54,25
249+
€53,52
499+
€52,78
999+
€51,32
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 17mm
- Width:
- 3.5mm
Technical
Technical
| Dc1 | 9mm |
|---|---|
| D | 17mm |
| B1 | 3.5mm |
| Eb | 10.3mm |
| Ea | 14.9mm |
| Dynamic load | 4.05 kN |
| Static load | 9.5 kN |
| Speed rating in oil | 19000 rpm |
| Mass | 0.004 kg |
