Major Brand AX4.5120155 Thin Needle Roller Thrust Bearing 120x155x4.5mm - Allow 2-3 Days
Major Brand AX4.5120155 Thin Needle Roller Thrust Bearing 120x155x4.5mm - Allow 2-3 Days
Regular price
€181,95
ex VAT
Regular price
Sale price
€181,95
ex VAT
In stock
Price Break
10+
€153,61
19+
€147,40
29+
€144,30
39+
€139,64
49+
€136,54
74+
€128,78
99+
€108,61
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Share this product
Description
Description

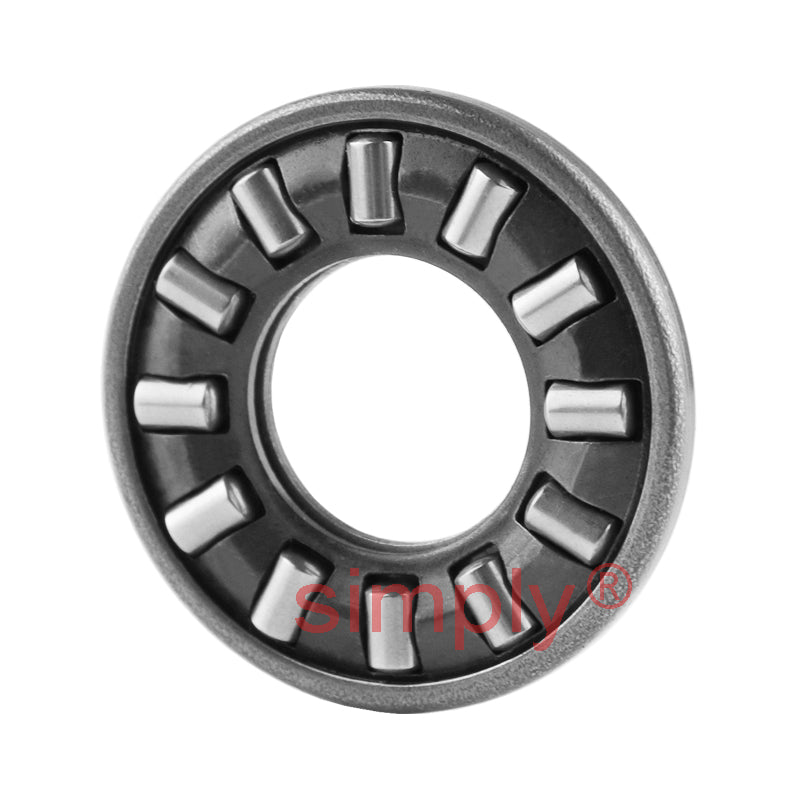

AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 155mm
- Width:
- 4.5mm
Technical
Technical
| Dc1 | 120mm |
|---|---|
| D | 155mm |
| B1 | 4.5mm |
| Eb | 124.2mm |
| Ea | 147.3mm |
| Dynamic load | 80 kN |
| Static load | 590 kN |
| Speed rating in oil | 1800 rpm |
| Mass | 0.182 kg |
