SKU: AX4060-MB

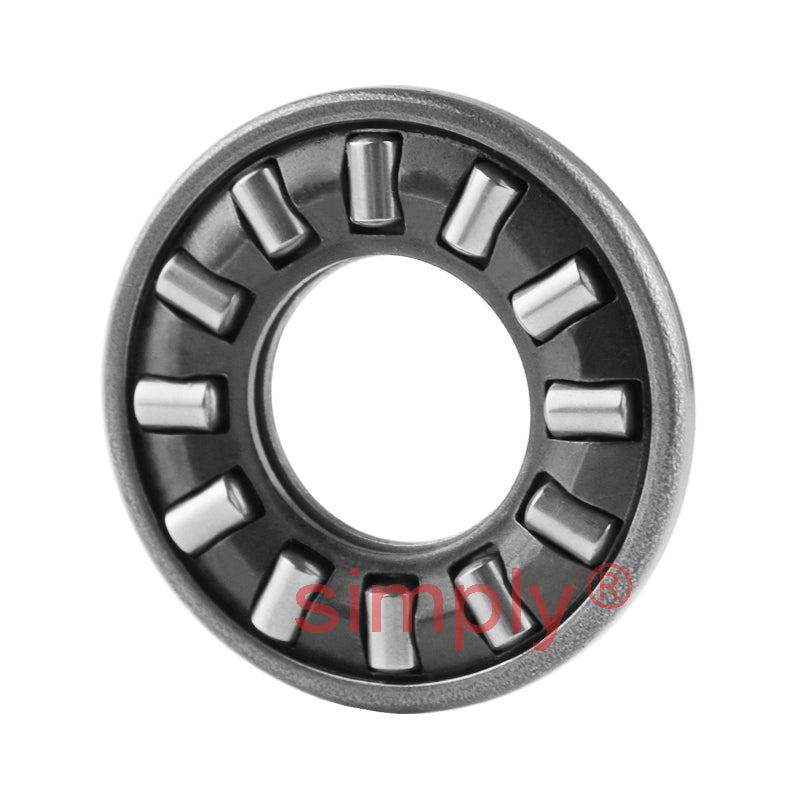

Major Brand AX4060 Thin Needle Roller Thrust Bearing 40x60x2.8mm
Major Brand AX4060 Thin Needle Roller Thrust Bearing 40x60x2.8mm
Regular price
€20,95
ex VAT
Regular price
Sale price
€20,95
ex VAT
In stock
Price Break
10+
€15,59
19+
€14,72
29+
€14,54
39+
€14,37
49+
€14,19
74+
€14,02
99+
€13,14
199+
€12,96
249+
€12,79
499+
€12,61
999+
€12,26
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 60mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 40mm |
|---|---|
| D | 60mm |
| B1 | 2.8mm |
| Eb | 43mm |
| Ea | 54.9mm |
| Dynamic load | 20.4 kN |
| Static load | 96 kN |
| Speed rating in oil | 5000 rpm |
| Mass | 0.024 kg |
