SKU: AX513-MB

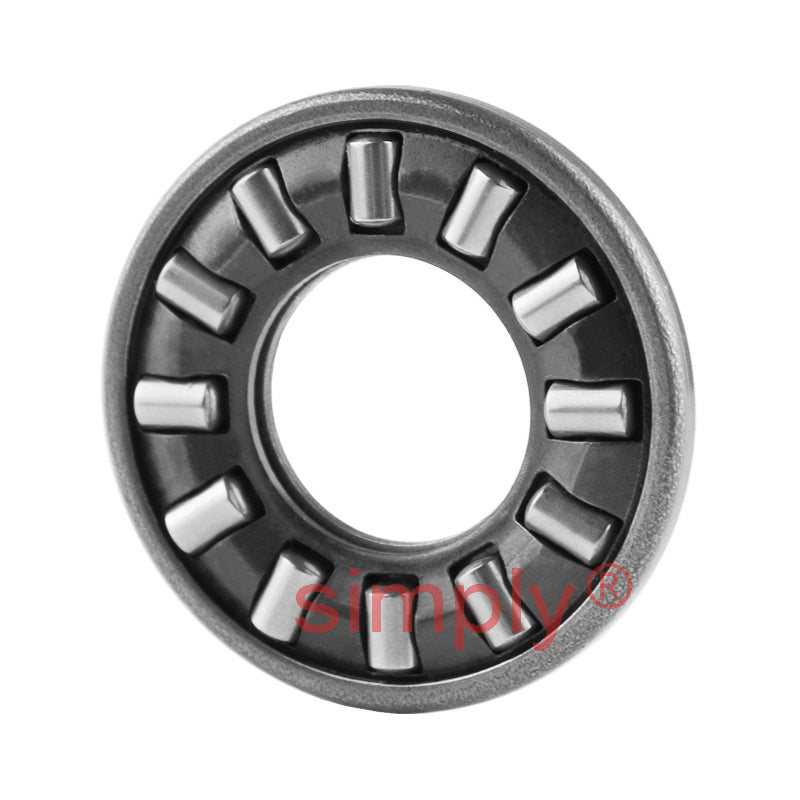

Major Brand AX513 Thin Needle Roller Thrust Bearing 5x13x2.3mm
Major Brand AX513 Thin Needle Roller Thrust Bearing 5x13x2.3mm
Regular price
€10,32
ex VAT
Regular price
Sale price
€10,32
ex VAT
In stock
Price Break
10+
€9,18
19+
€8,67
29+
€8,57
39+
€8,46
49+
€8,36
74+
€8,26
99+
€7,74
199+
€7,64
249+
€7,53
499+
€7,43
999+
€7,22
Couldn't load pickup availability
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 13mm
- Width:
- 2.3mm
Technical
Technical
| Dc1 | 5mm |
|---|---|
| D | 13mm |
| B1 | 2.3mm |
| Eb | 6.3mm |
| Ea | 10.9mm |
| Dynamic load | 3 kN |
| Static load | 5.7 kN |
| Speed rating in oil | 25000 rpm |
| Mass | 0.001 kg |
