SKU: AX52035-MB

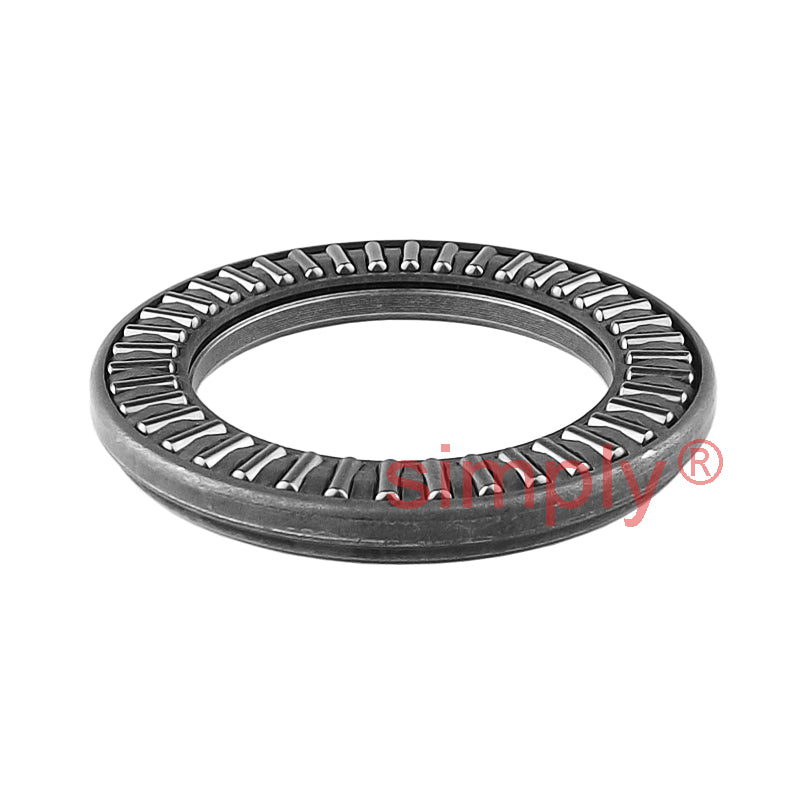

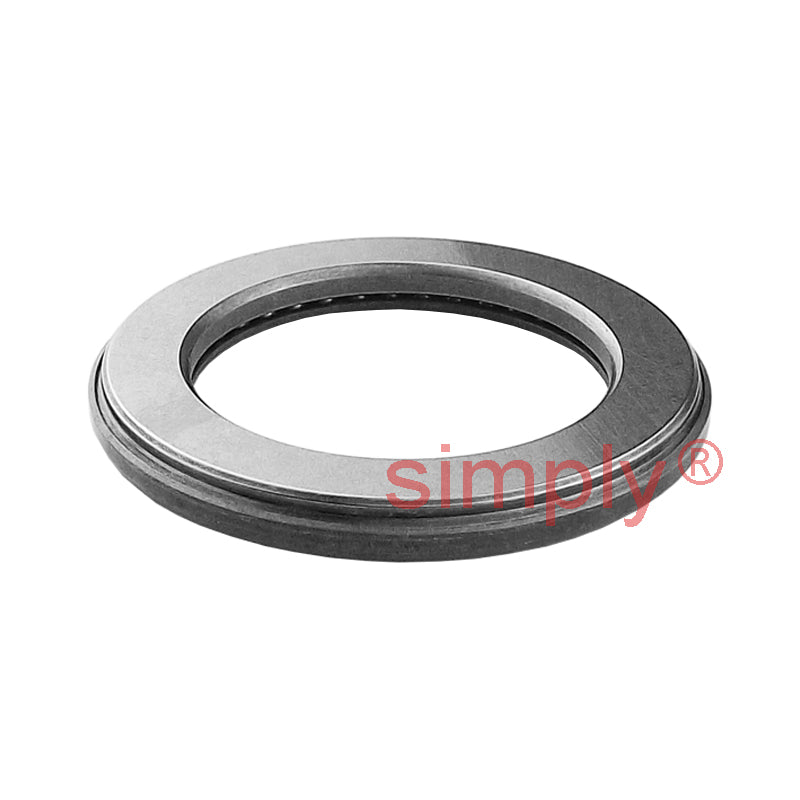

Major Brand AX52035 Thick Needle Roller Thrust Bearing 20x35x5mm
Major Brand AX52035 Thick Needle Roller Thrust Bearing 20x35x5mm
Regular price
€14,48
ex VAT
Regular price
Sale price
€14,48
ex VAT
In stock
Price Break
10+
€12,89
19+
€12,16
29+
€12,02
39+
€11,87
49+
€11,73
74+
€11,58
99+
€10,86
199+
€10,72
249+
€10,57
499+
€10,43
999+
€10,14
Couldn't load pickup availability
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 20mm |
|---|---|
| D | 35mm |
| B1 | 5mm |
| Eb | 22mm |
| Ea | 31.6mm |
| Dynamic load | 11.8 kN |
| Static load | 39 kN |
| Speed rating in oil | 9000 rpm |
| Mass | 0.018 kg |
