SKU: AX53552-MB

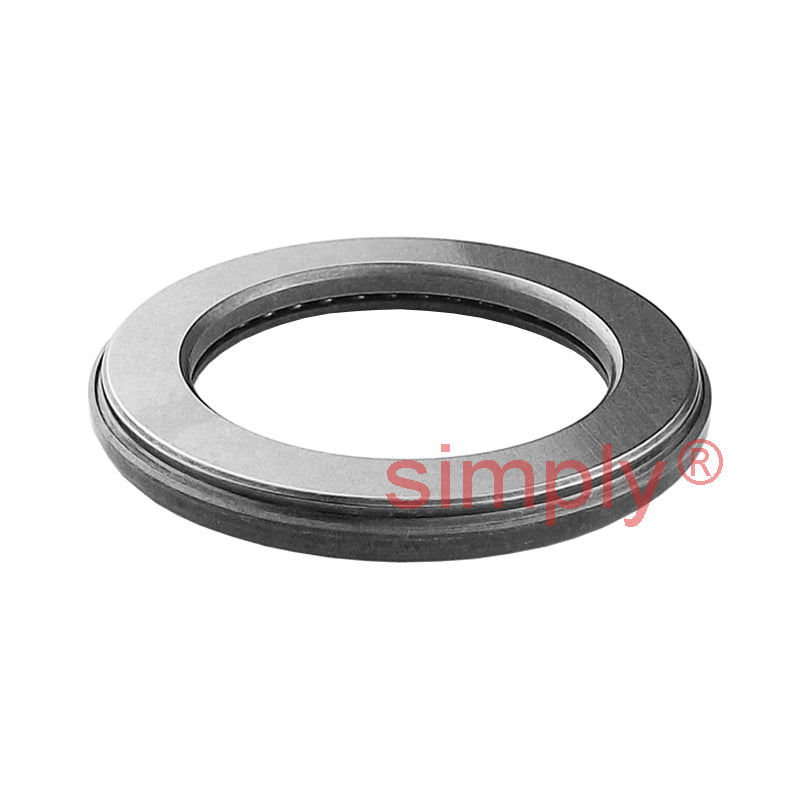

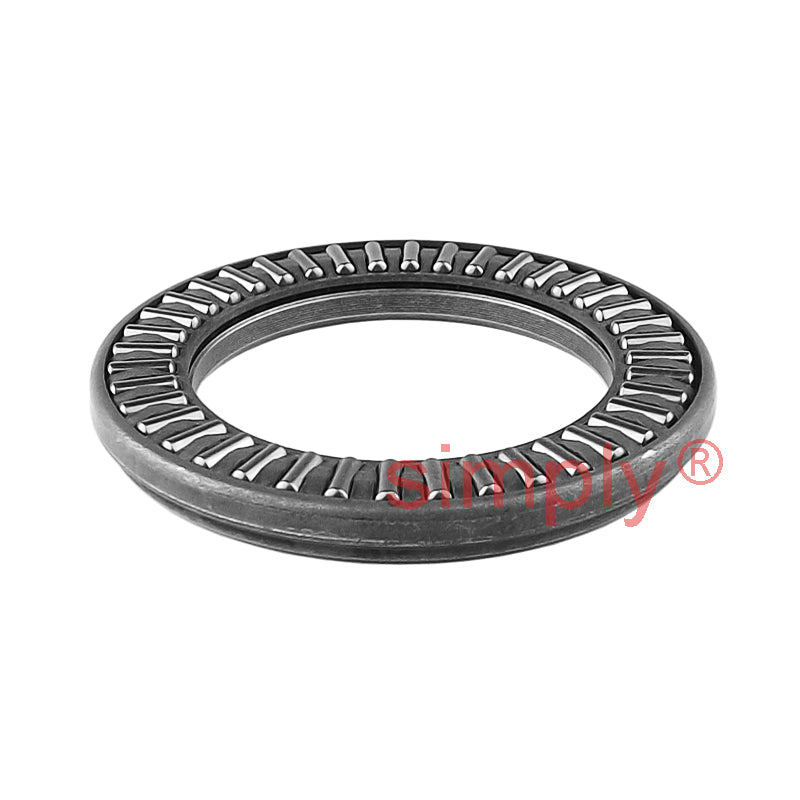

Major Brand AX53552 Thick Needle Roller Thrust Bearing 35x52x5mm
Major Brand AX53552 Thick Needle Roller Thrust Bearing 35x52x5mm
Regular price
€52,95
ex VAT
Regular price
Sale price
€52,95
ex VAT
In stock
Price Break
10+
€39,77
19+
€37,53
29+
€37,08
39+
€36,64
49+
€36,19
74+
€35,74
99+
€33,51
199+
€33,06
249+
€32,62
499+
€32,17
999+
€31,28
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 52mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 35mm |
|---|---|
| D | 52mm |
| B1 | 5mm |
| Eb | 37.2mm |
| Ea | 49mm |
| Dynamic load | 18.9 kN |
| Static load | 84 kN |
| Speed rating in oil | 5500 rpm |
| Mass | 0.035 kg |
